Airflow Mode Actuator And Climate Control Unit Connector End View
Airflow Mode Actuator And Climate Control Unit Connector End View

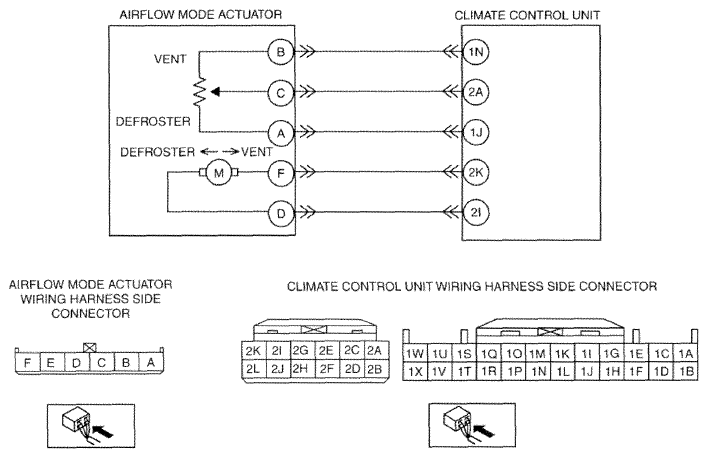

Fig 1: Airflow Mode Actuator And Climate Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
