Blower Relay Connector End View
Blower Relay Connector End View

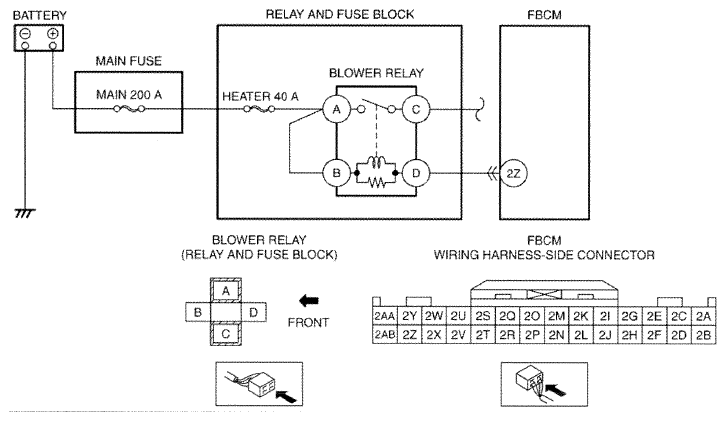

Fig 1: Blower Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
