Horn Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

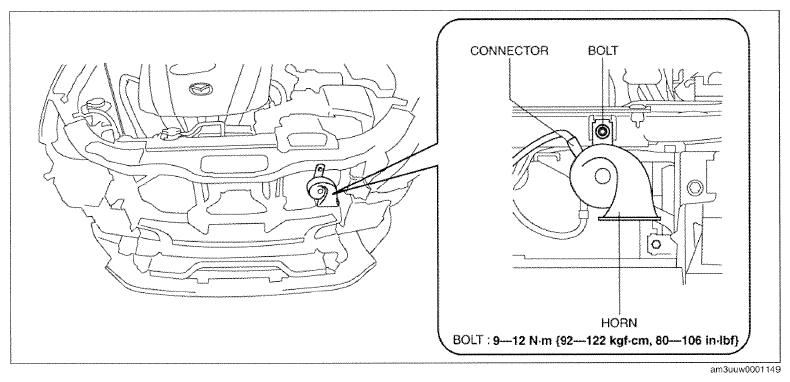

    Fig 1: Horn And Bolt With Torque Specifications
    G09784415Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the horn.
  7. Install in the reverse order of removal.
