Exhaust Manifold Insulator Removal Note

  1. Remove the insulator as shown in the figure.
  2. Remove the No. 1 engine mount rubber. (See ENGINE REMOVAL/INSTALLATION .)
  3. Move the engine.
  4. Remove the exhaust manifold insulator.

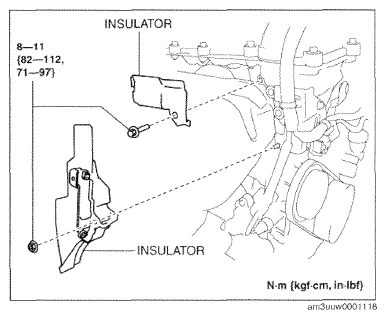

    Fig 1: Insulator And Mounting Bolts With Torque Specifications
    G09782740Courtesy of MAZDA MOTORS CORP.
