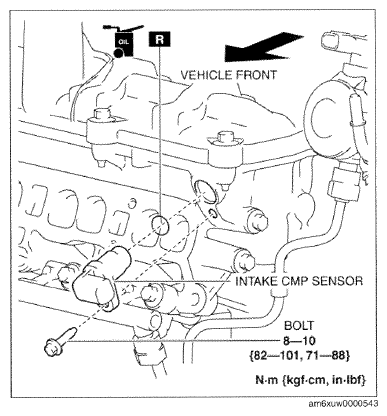

Intake CMP Sensor
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the intake CMP sensor connector.
- Remove the intake CMP sensor.
- Install in the reverse order of removal.
