Fuel System Location Index
›
Fuel Tank Side
›
Except U.S.A. and CANADA
Except U.S.A. and CANADA

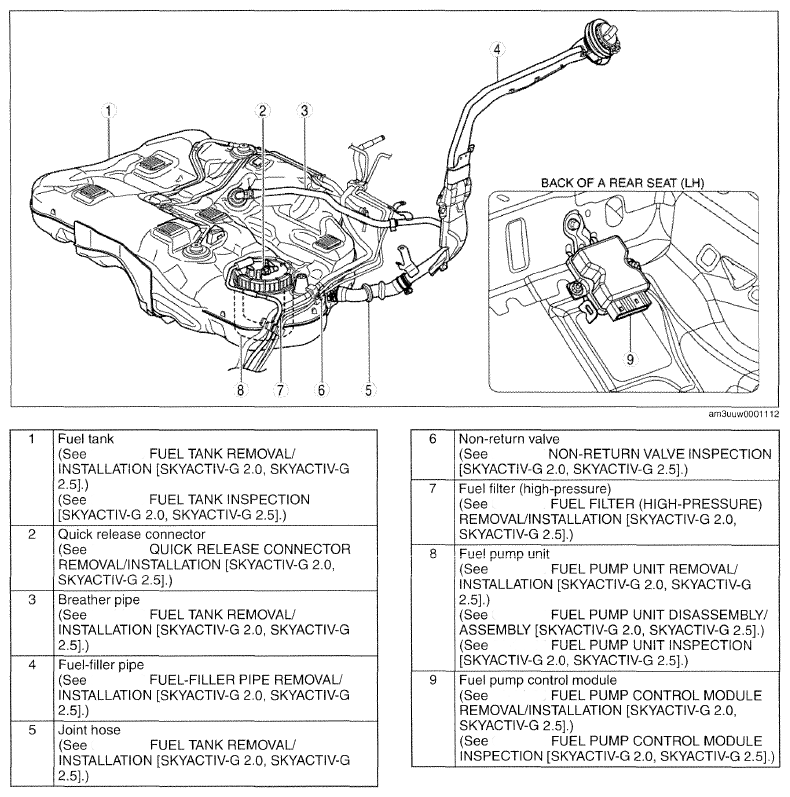

Fig 1: Fuel Tank Side Fuel System Components Location (Except U.S.A. And Canada)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
