Fuel-Filler Pipe Removal/Installation
›
U.S.A. and CANADA
U.S.A. and CANADA

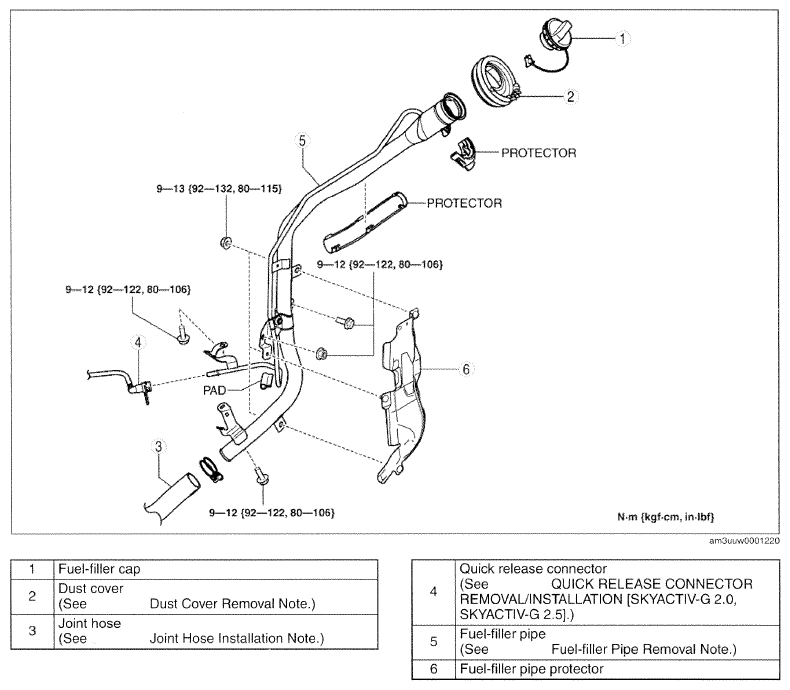

Fig 1: Exploded View Of Fuel-Filler Lid With Torque Specifications (U.S.A. And CANADA)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
