Clutch Unit Removal/Installation: Notes

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
2. Remove the MTX. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Add the specified amount of specified transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)

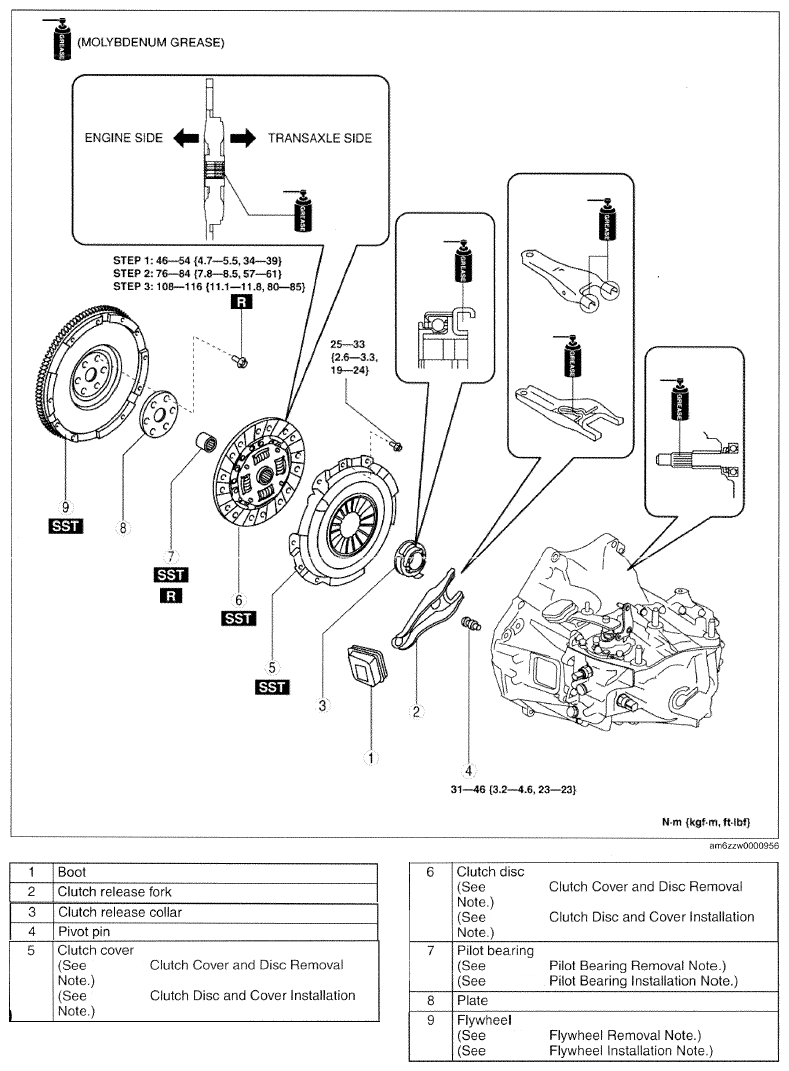

   Fig 1: Clutch Unit Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
