Dynamic Stability Control System Wiring Diagram
Dynamic Stability Control System Wiring Diagram

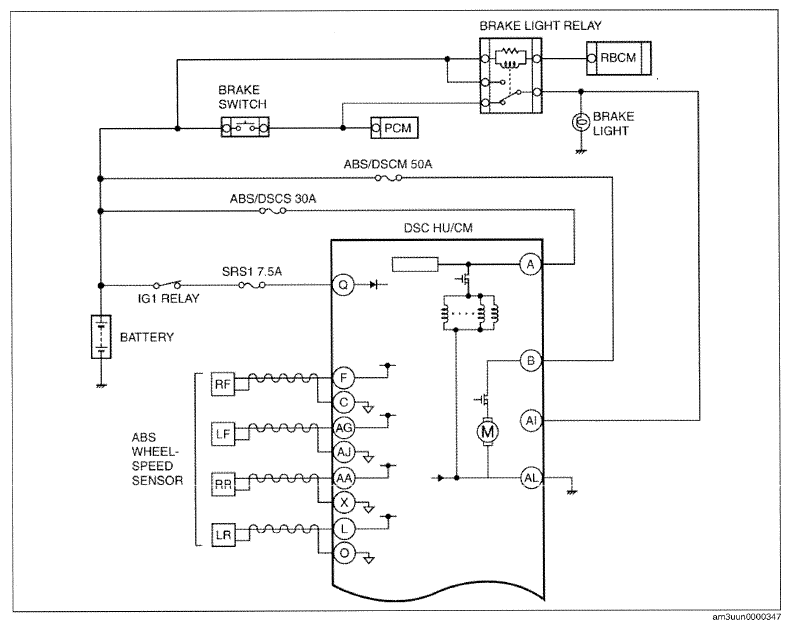

Fig 1: Dynamic Stability Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

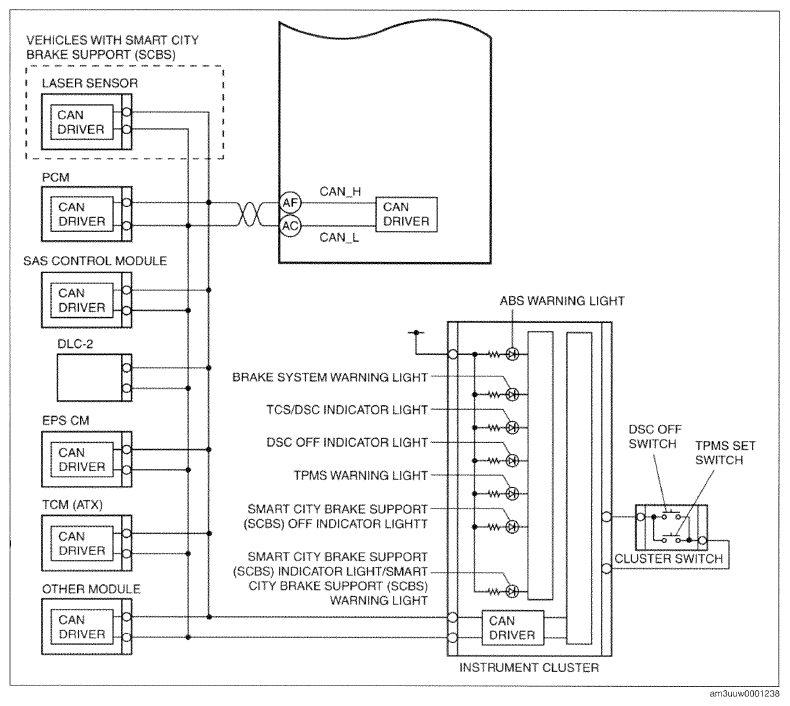

Fig 2: Dynamic Stability Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
