Intake-Air System Removal/Installation
›
Air Hose Installation Note
›
Throttle body side
Throttle body side

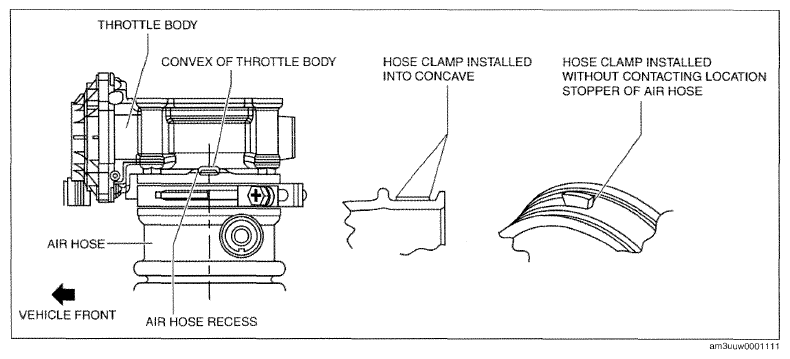

Fig 1: Identifying Air Hose Installation Position (Throttle Body Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
