Locks and Openers

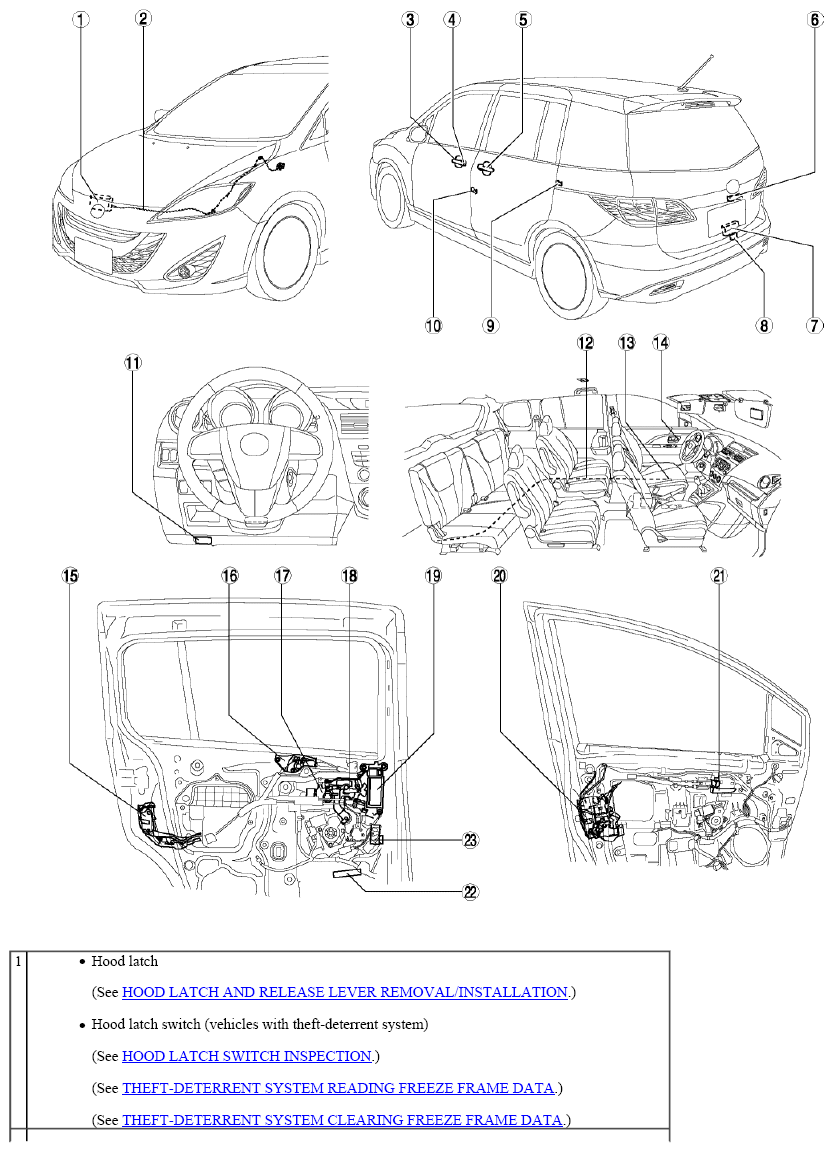

Fig 1: Identifying Locks And Openers Component Locations (1 Of 2)
G08153019Courtesy of MAZDA MOTORS CORP.

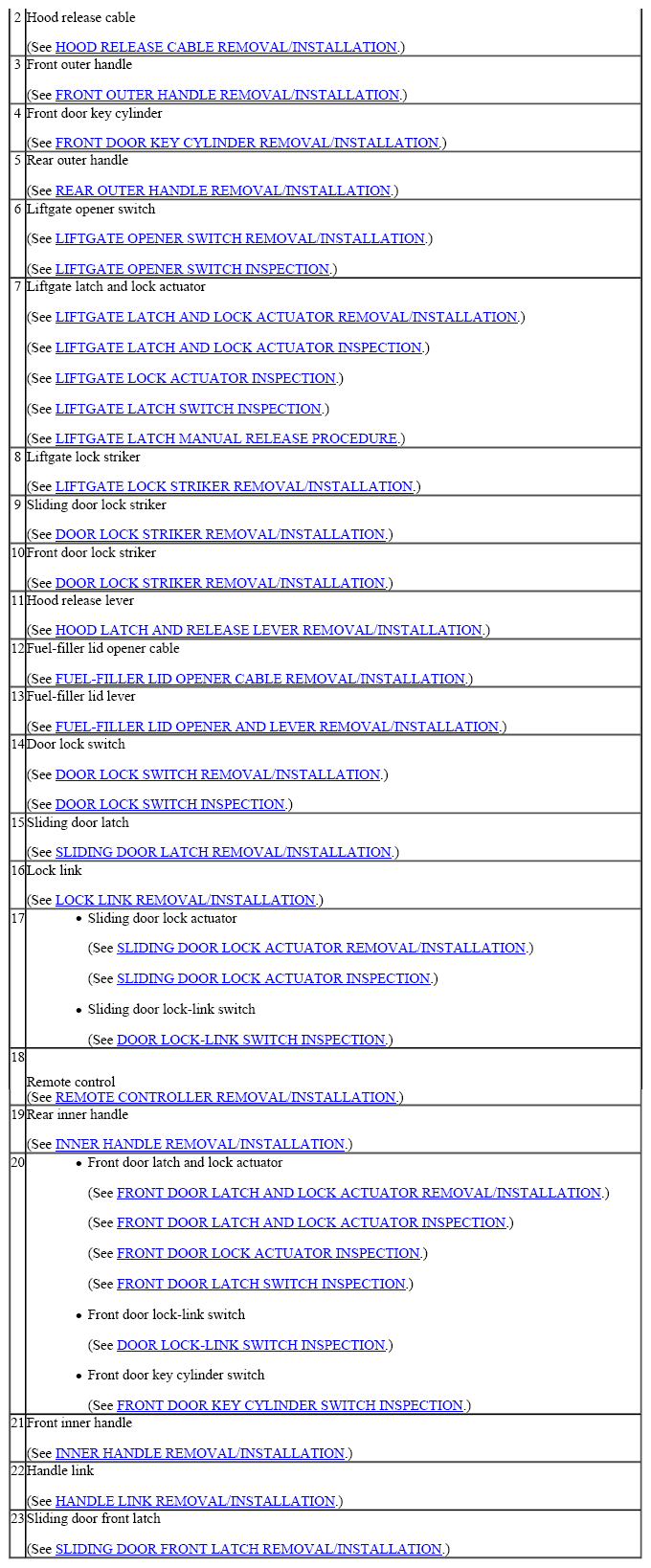

Fig 2: Identifying Locks And Openers Component Locations (2 Of 2)
G08153020Courtesy of MAZDA MOTORS CORP.
