Sunroof Unit Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

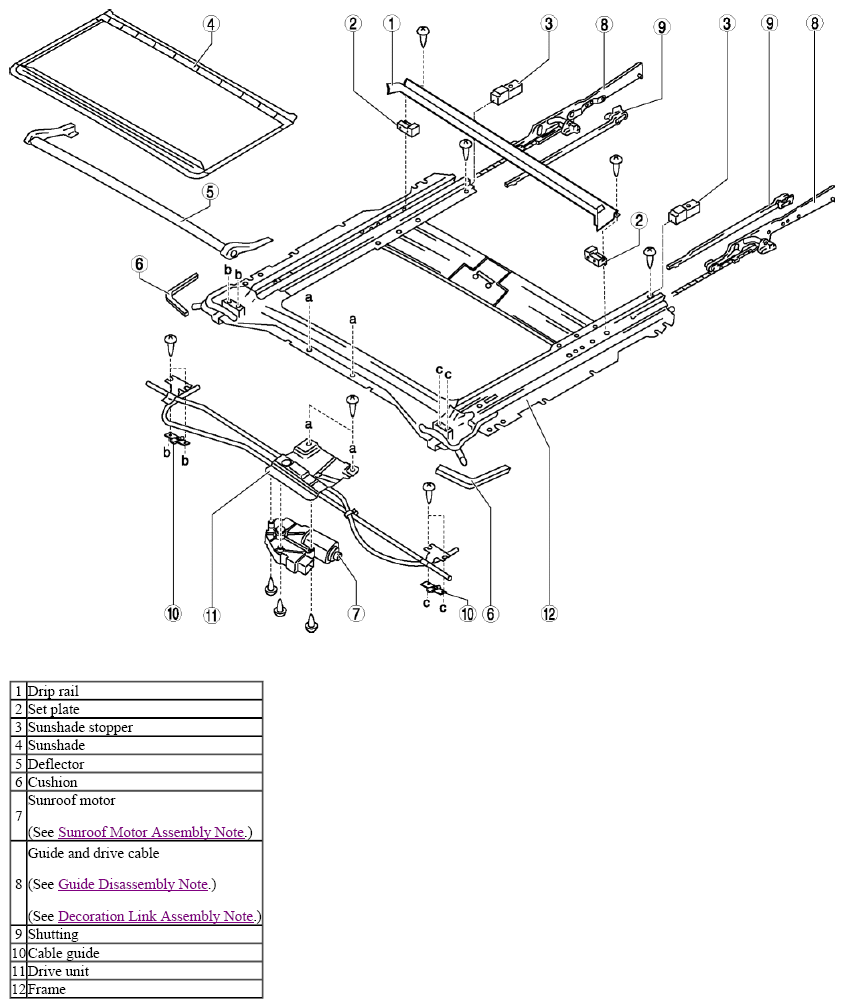

Fig 1: Exploded View Of Sunroof Unit
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
