Symptom Troubleshooting - Automatic Transaxle
›
Quick Diagnosis Table
Quick Diagnosis Table

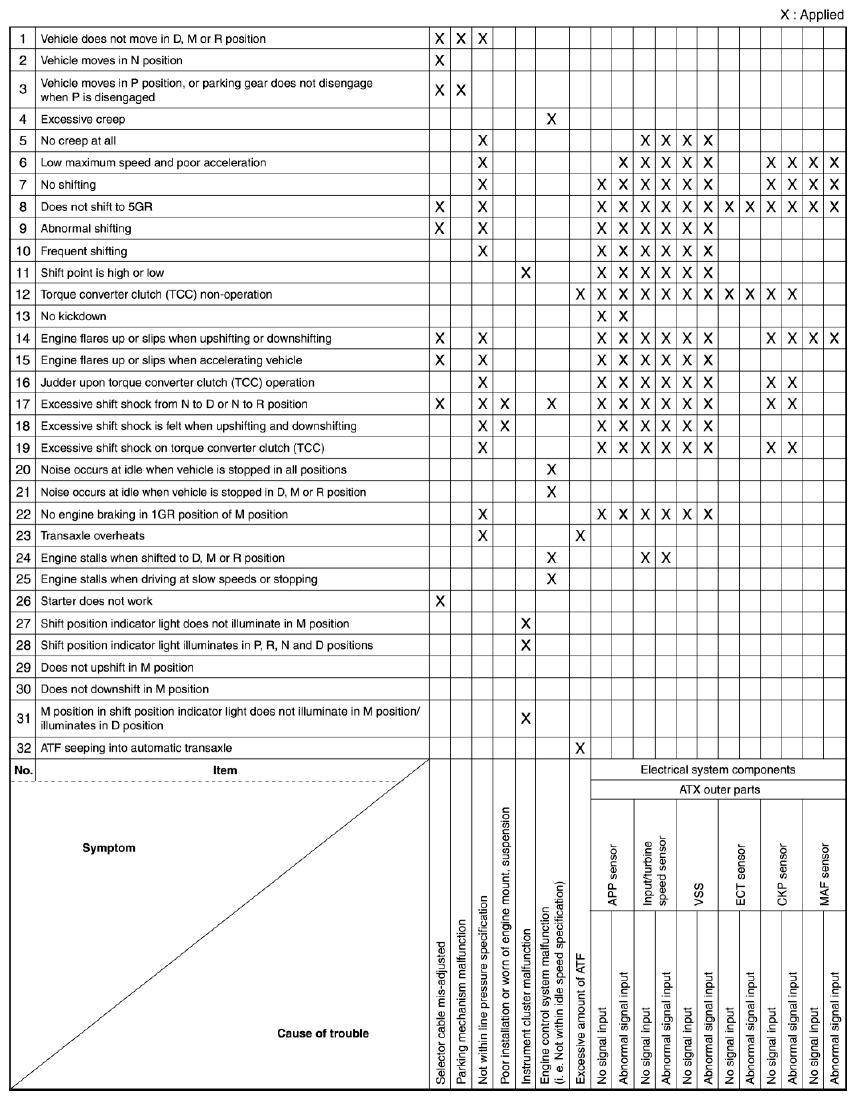

Fig 1: FS5A-EL - Quick Diagnosis Table (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

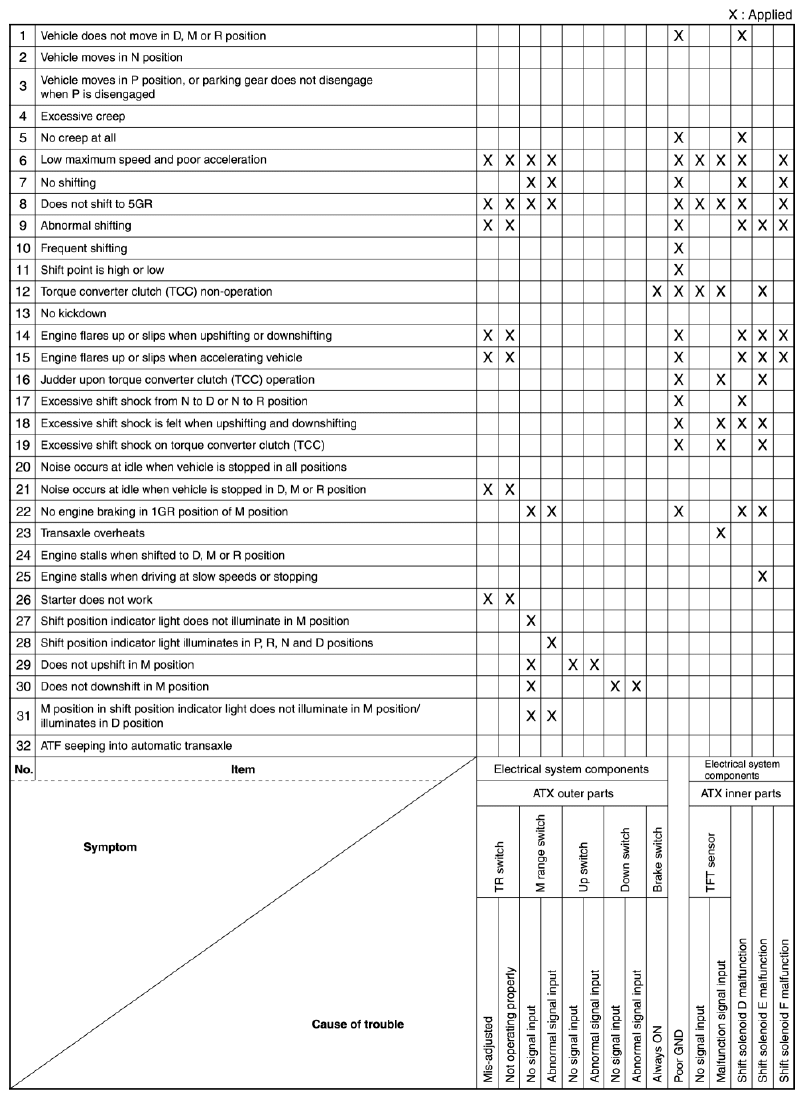

Fig 2: FS5A-EL - Quick Diagnosis Table (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

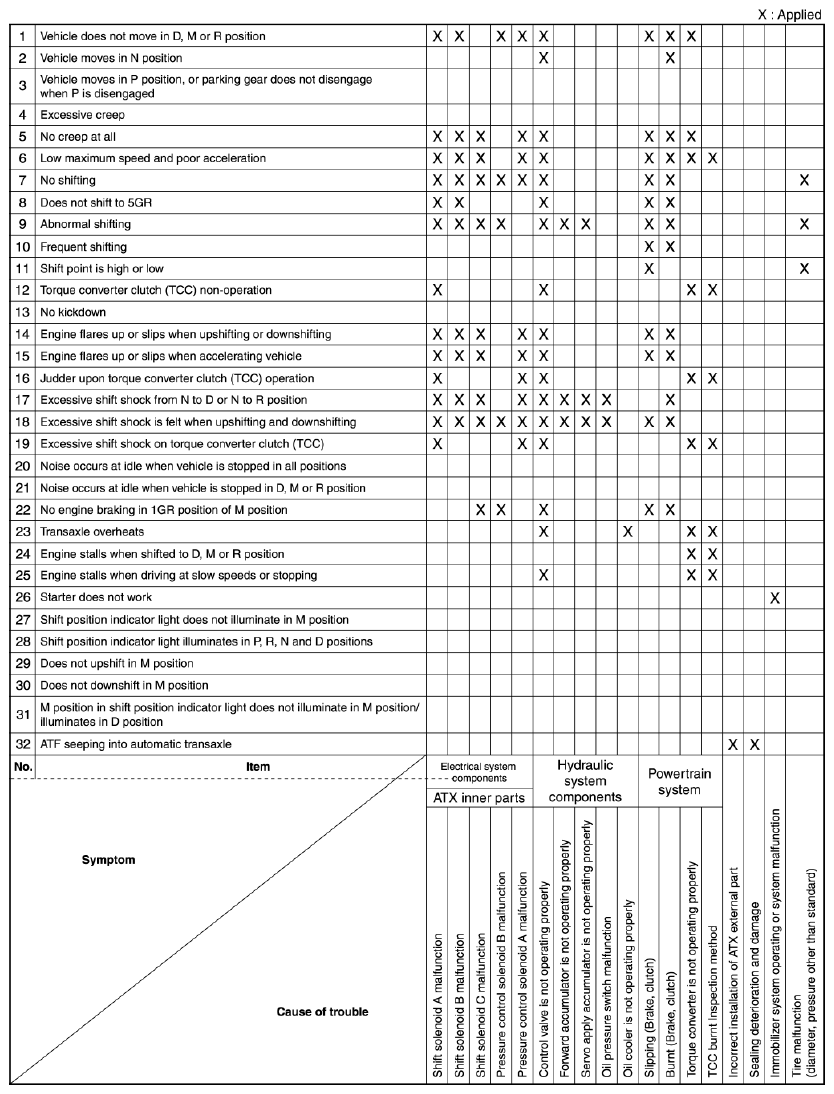

Fig 3: FS5A-EL - Quick Diagnosis Table (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

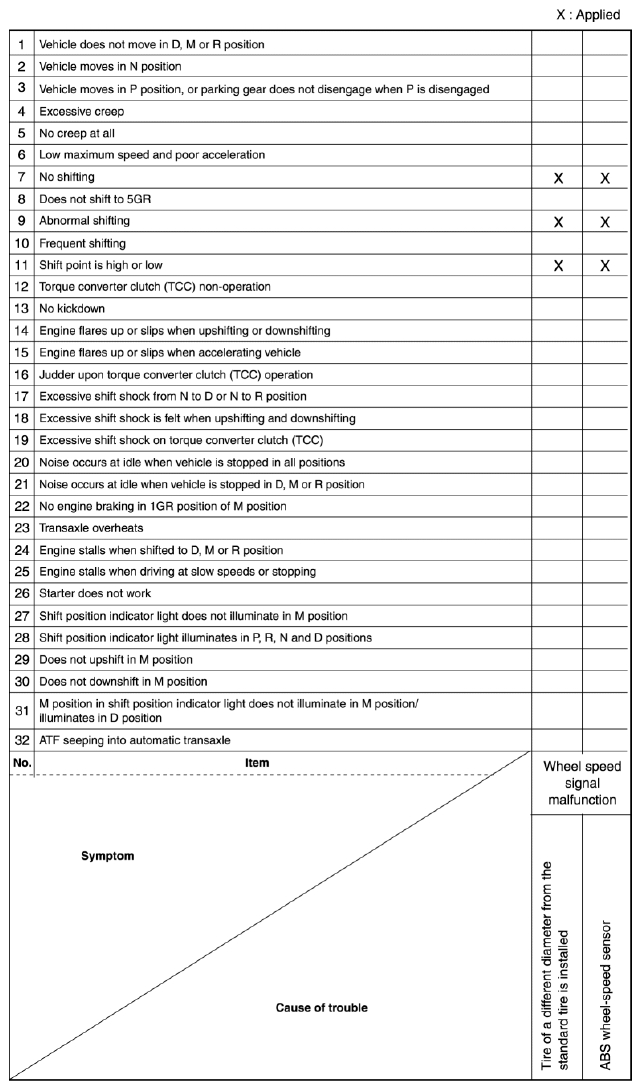

Fig 4: FS5A-EL - Quick Diagnosis Table (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
