Clutch Housing And Transaxle Case Components Assembly: Notes

  1. Assemble in the order indicated in the table.

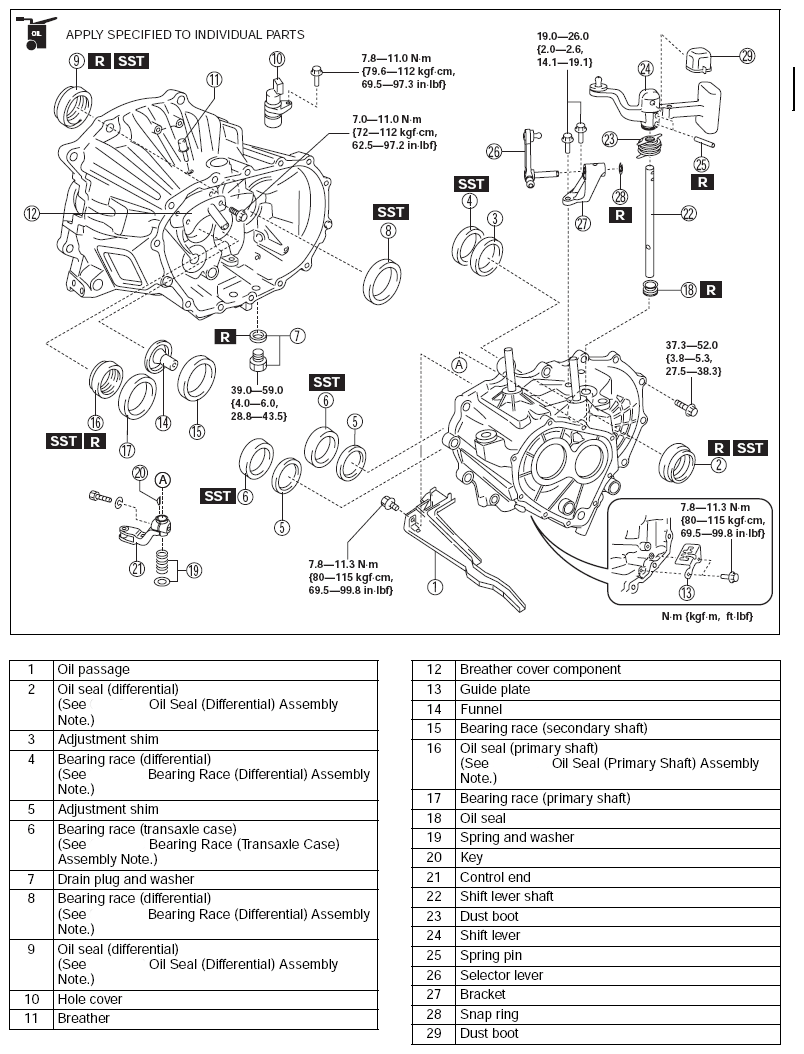

    Fig 1: Identifying Clutch Housing And Transaxle Case Components
    G08803767
