Washer Tank Removal/Installation: Notes

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Vehicles with the washer fluid-level sensor

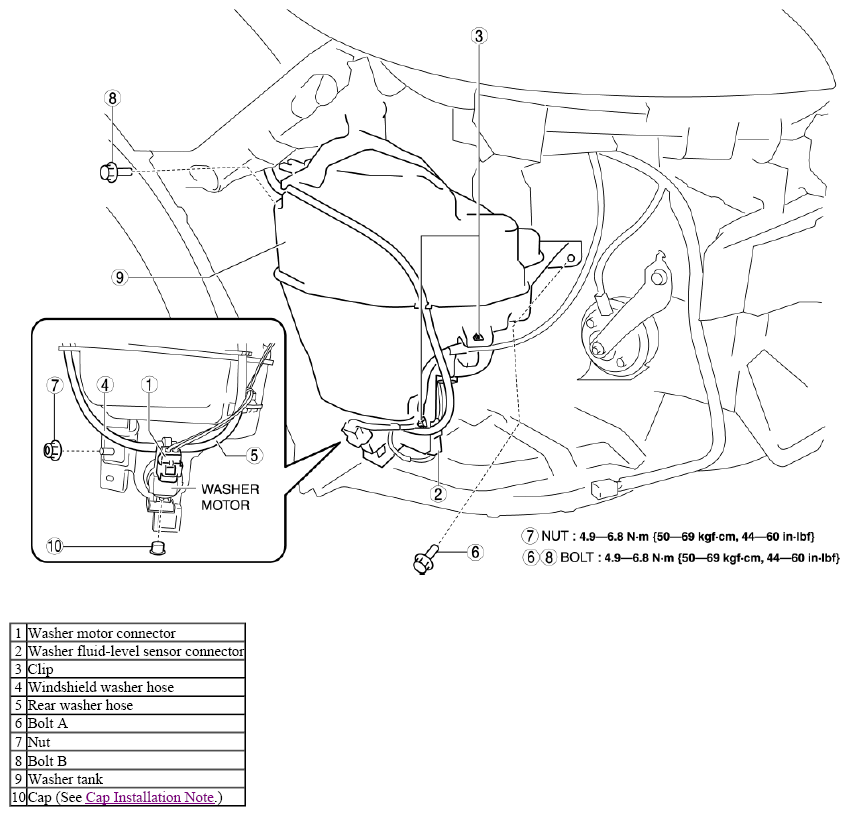

Fig 1: Washer Tank - Vehicles With Washer Fluid-Level Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

Vehicles without the washer fluid-level sensor

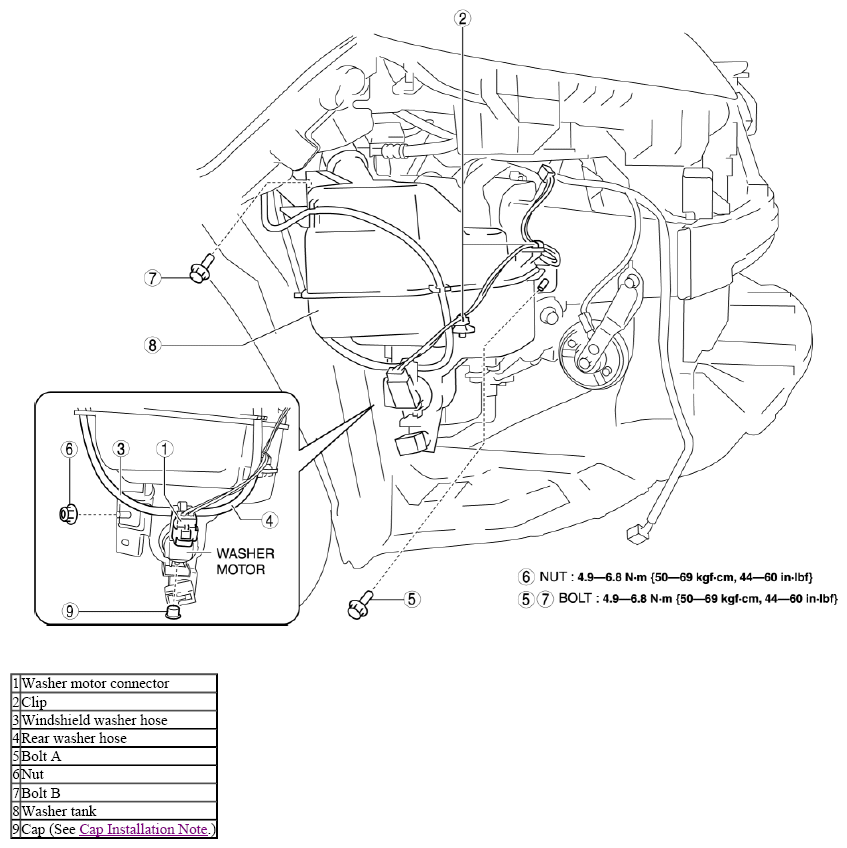

Fig 2: Washer Tank - Vehicles Without Washer Fluid-Level Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
