Wheel Hub, Steering Knuckle Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

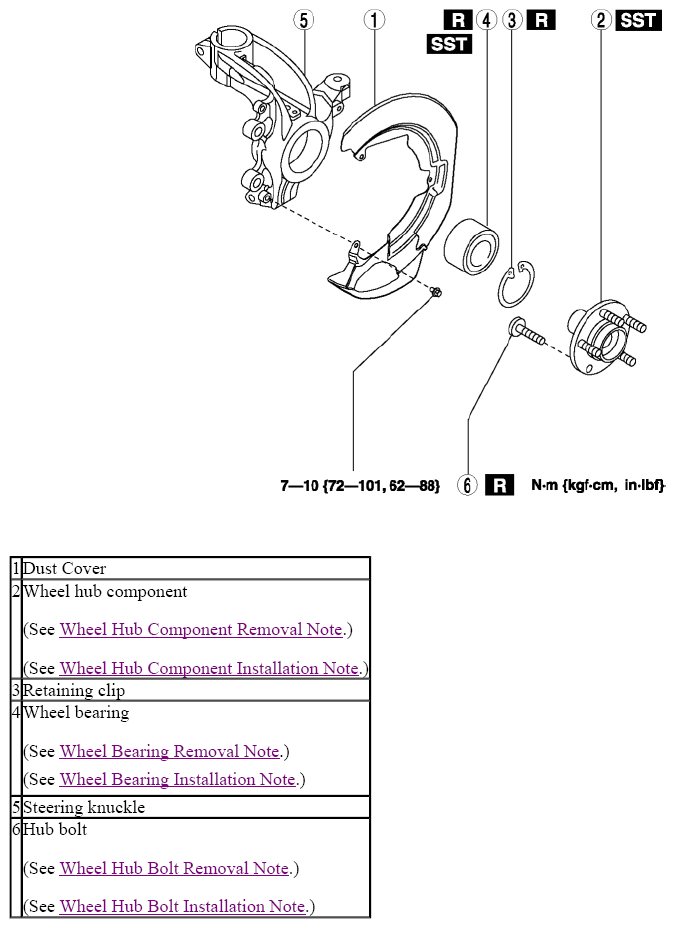

Fig 1: View Of Wheel Hub And Steering Knuckle Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
