BCM (Body Control Module)

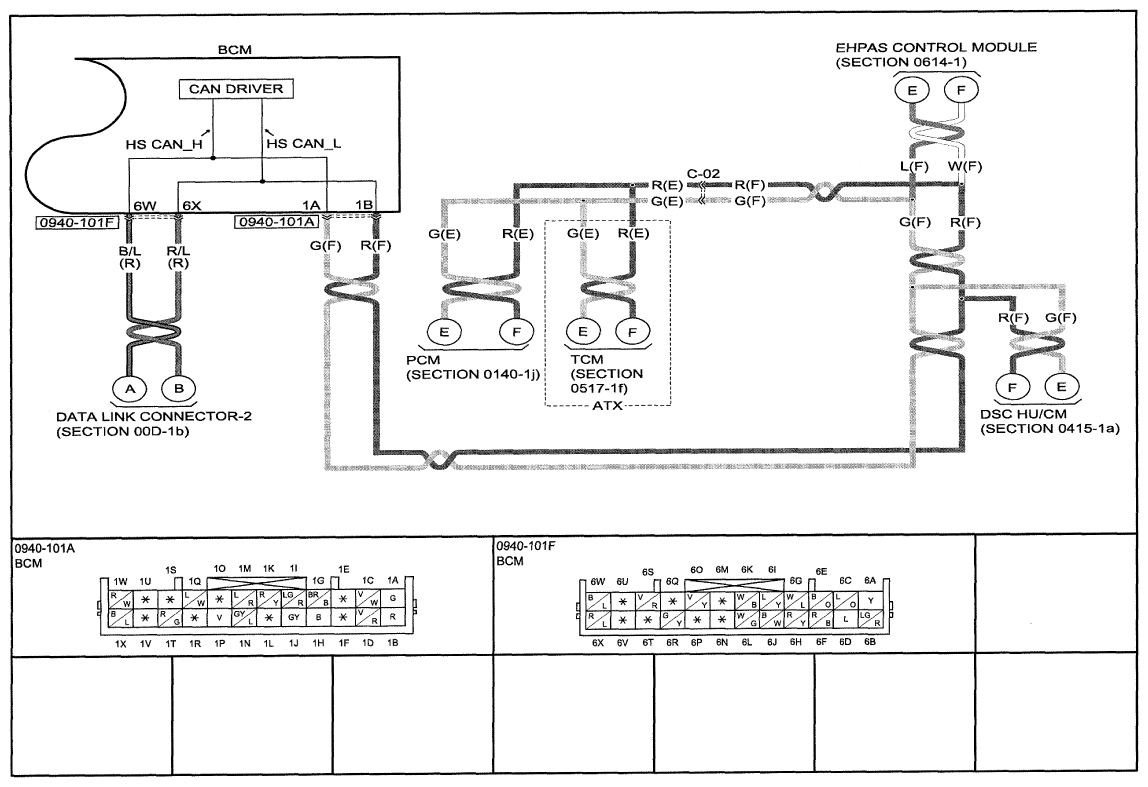

Fig 1: Body Control Module System Wiring Diagram - 0940-1a (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

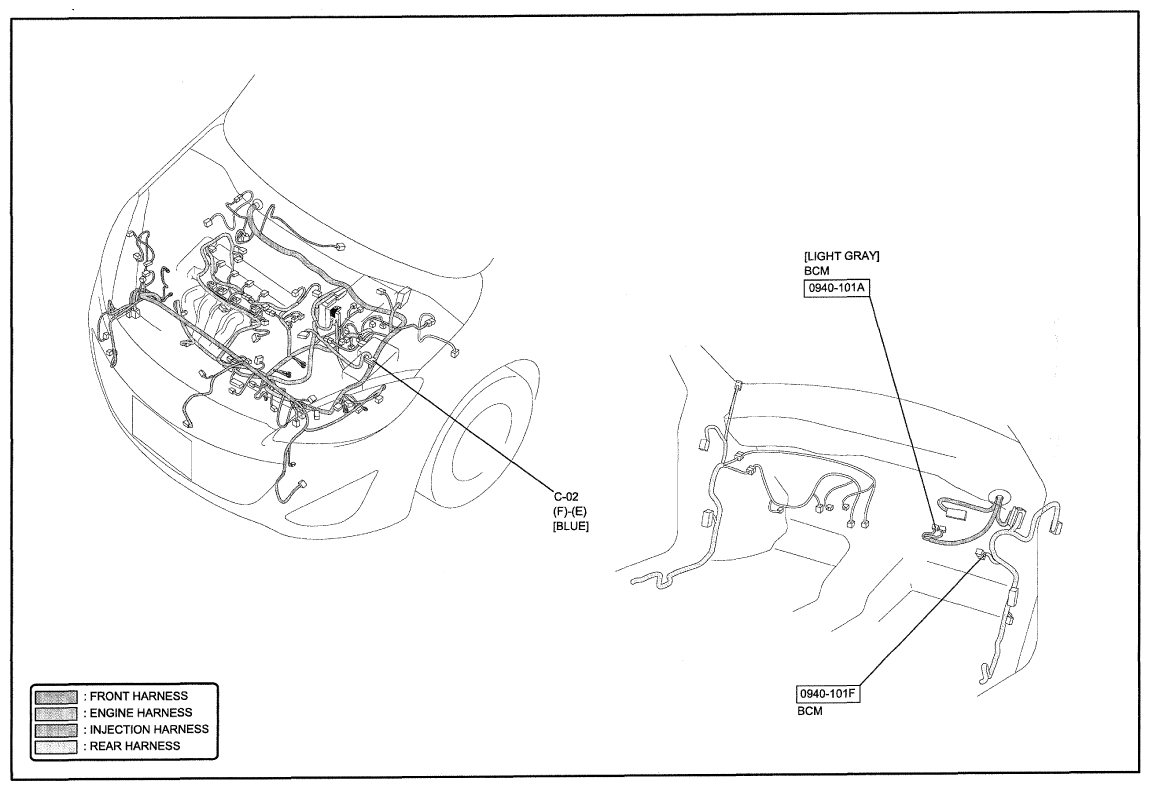

Fig 2: Body Control Module System Wiring Diagram - 0940-1a (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

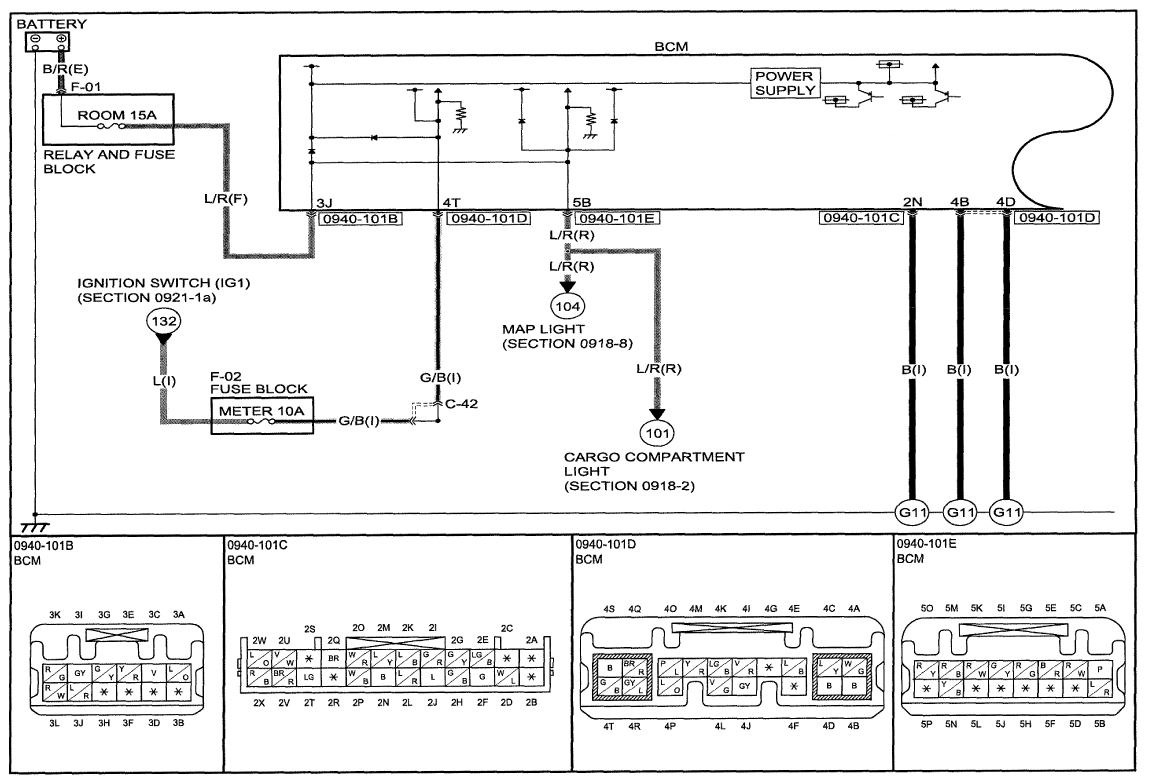

Fig 3: Body Control Module System Wiring Diagram - 0940-1b (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

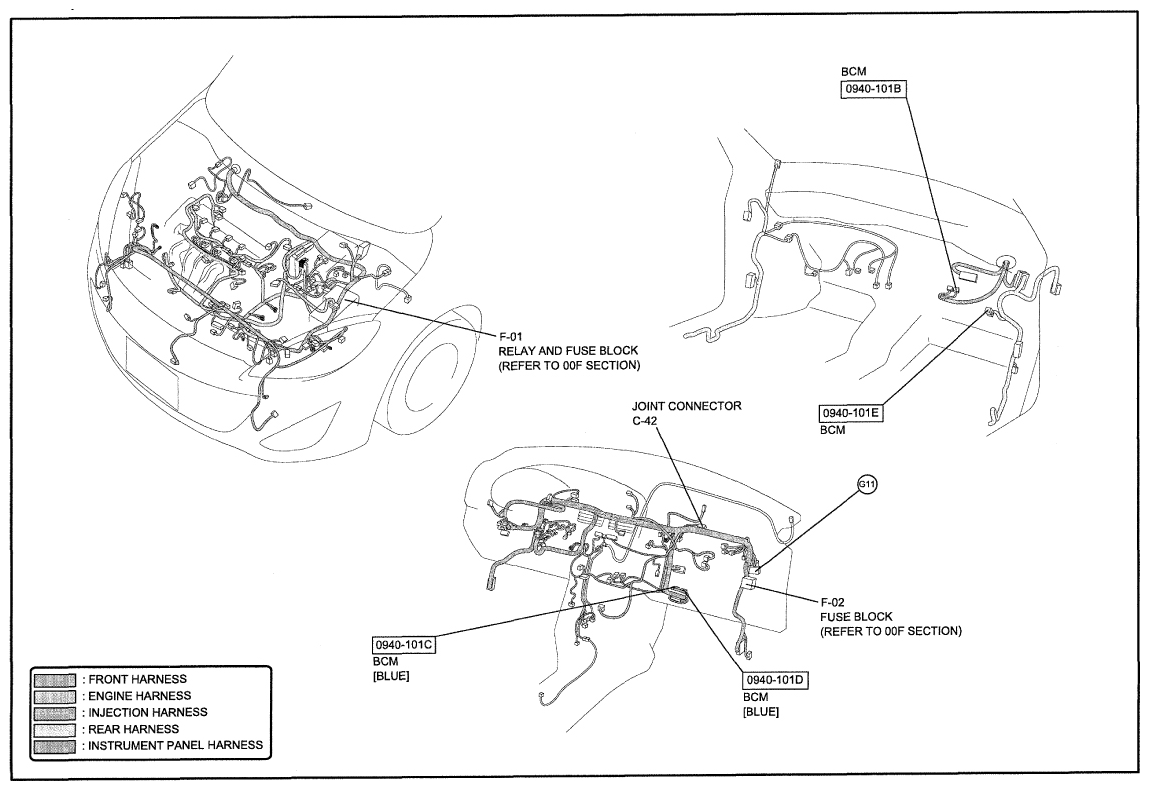

Fig 4: Body Control Module System Wiring Diagram - 0940-1b (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
