Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring System
›
Brake
›
Dynamic Stability Control
Dynamic Stability Control

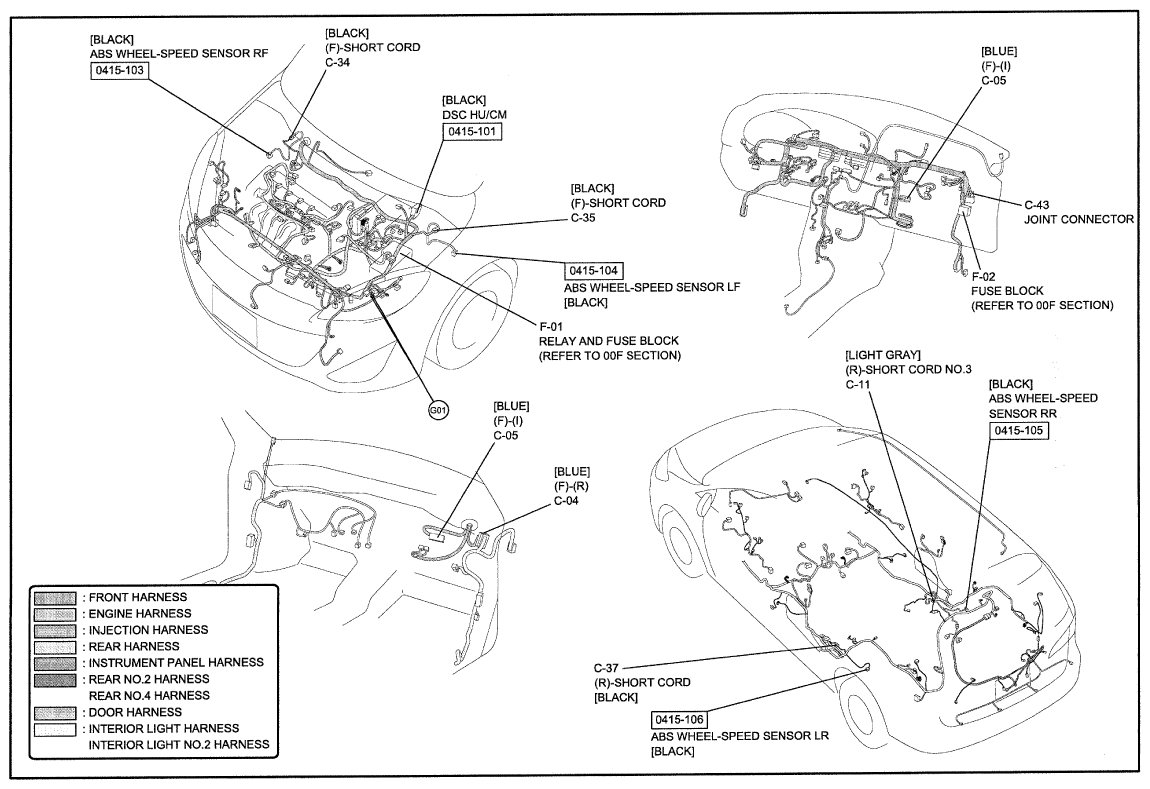

Fig 1: Dynamic Stability Control System Wiring Diagram - 0415-1a (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

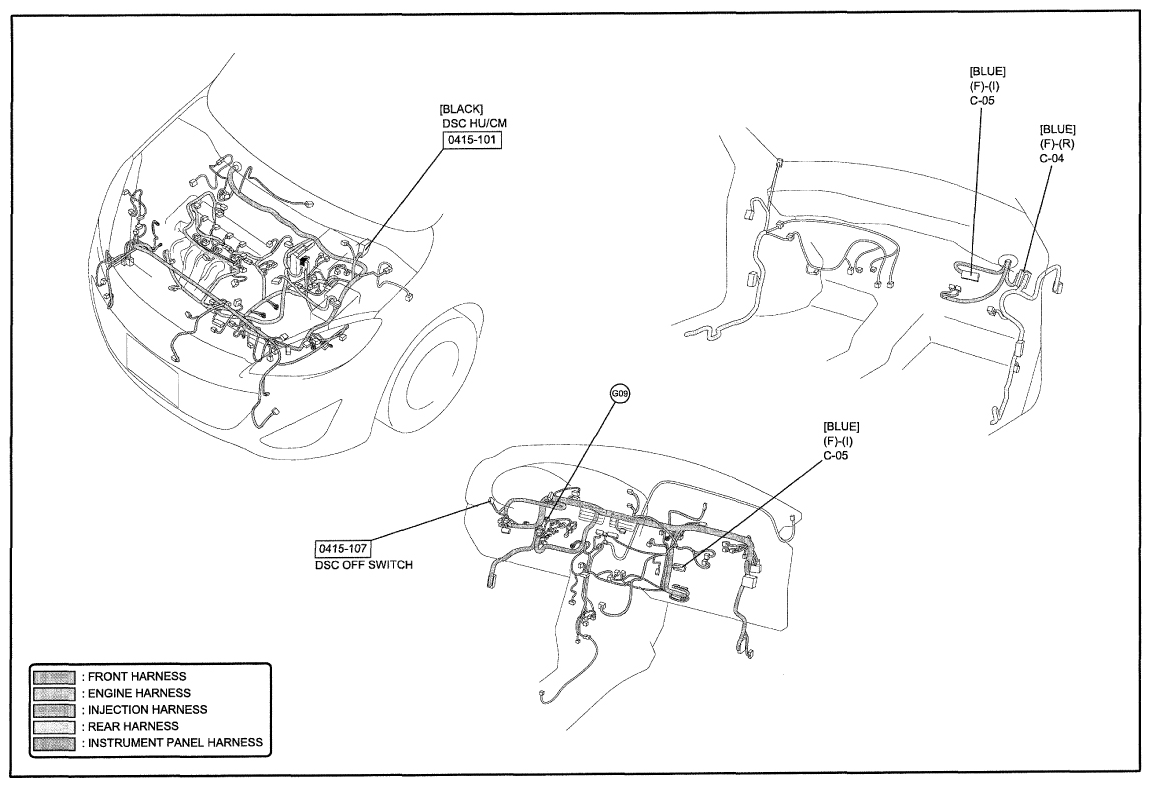

Fig 2: Dynamic Stability Control System Wiring Diagram - 0415-1a (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

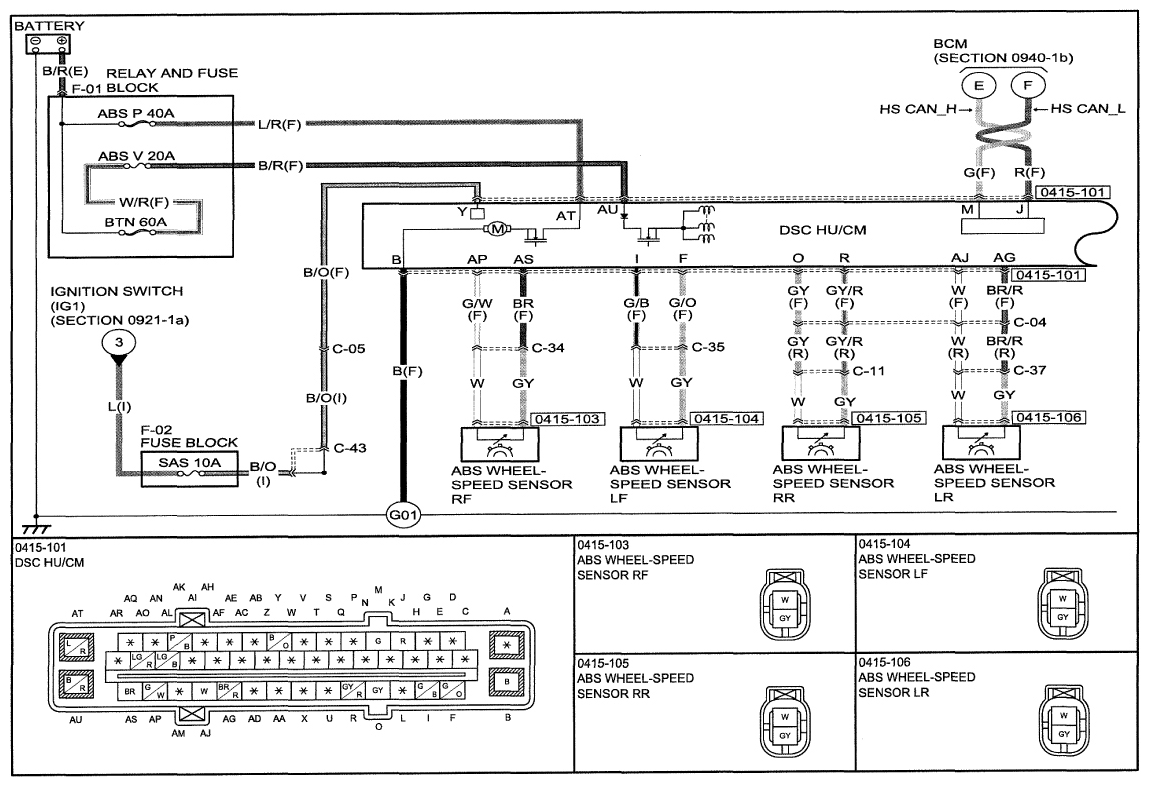

Fig 3: Dynamic Stability Control System Wiring Diagram - 0415-1b (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

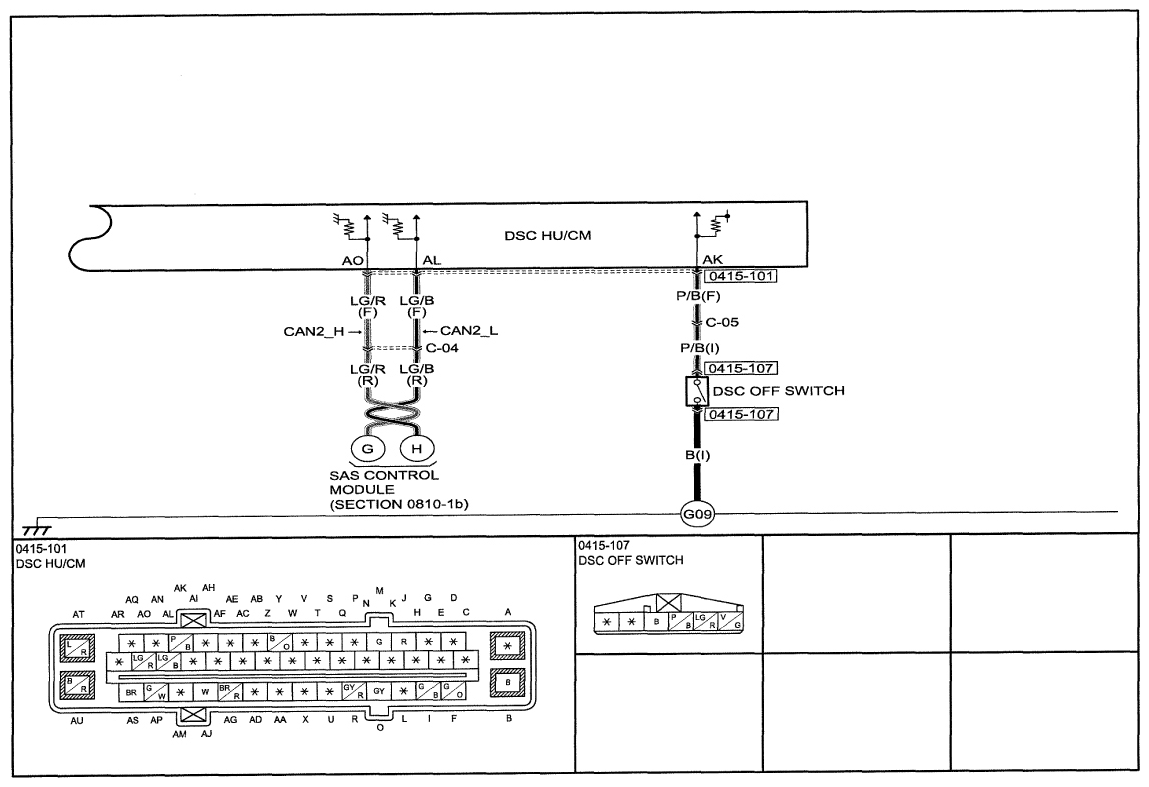

Fig 4: Dynamic Stability Control System Wiring Diagram - 0415-1b (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
