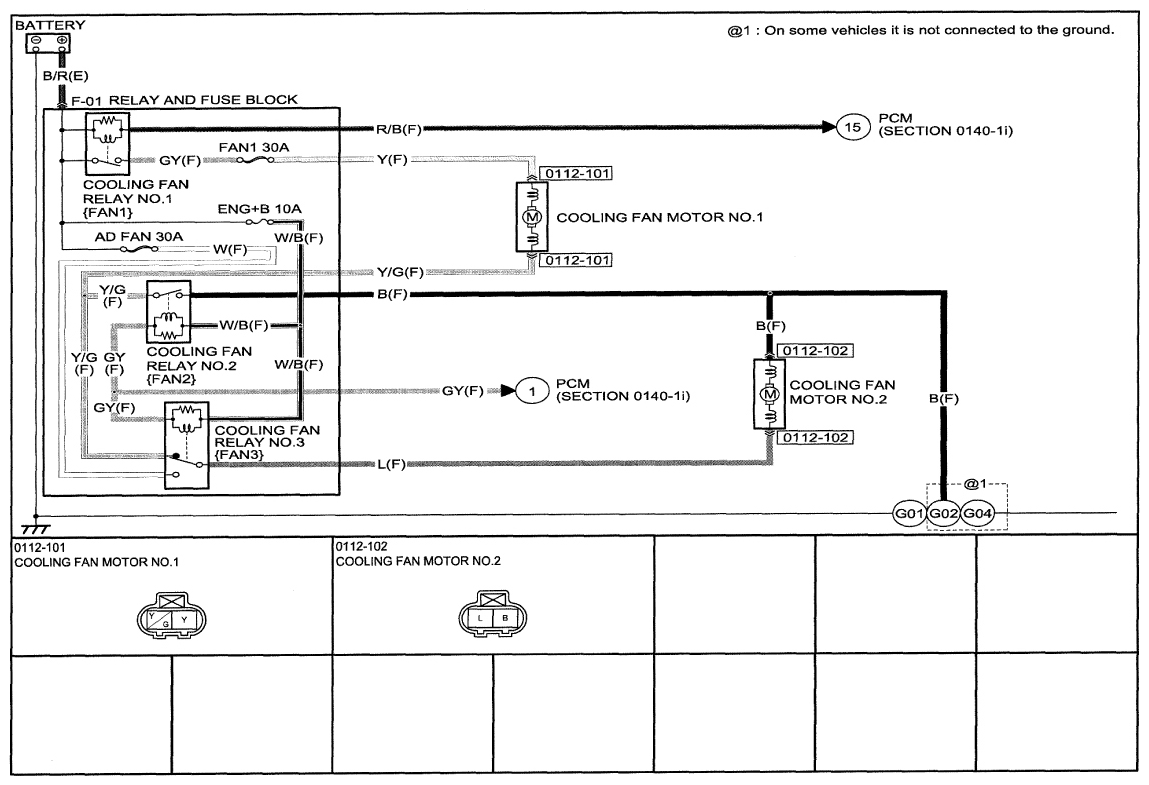

Fig 1: Cooling System Wiring Diagram - 0112-1 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

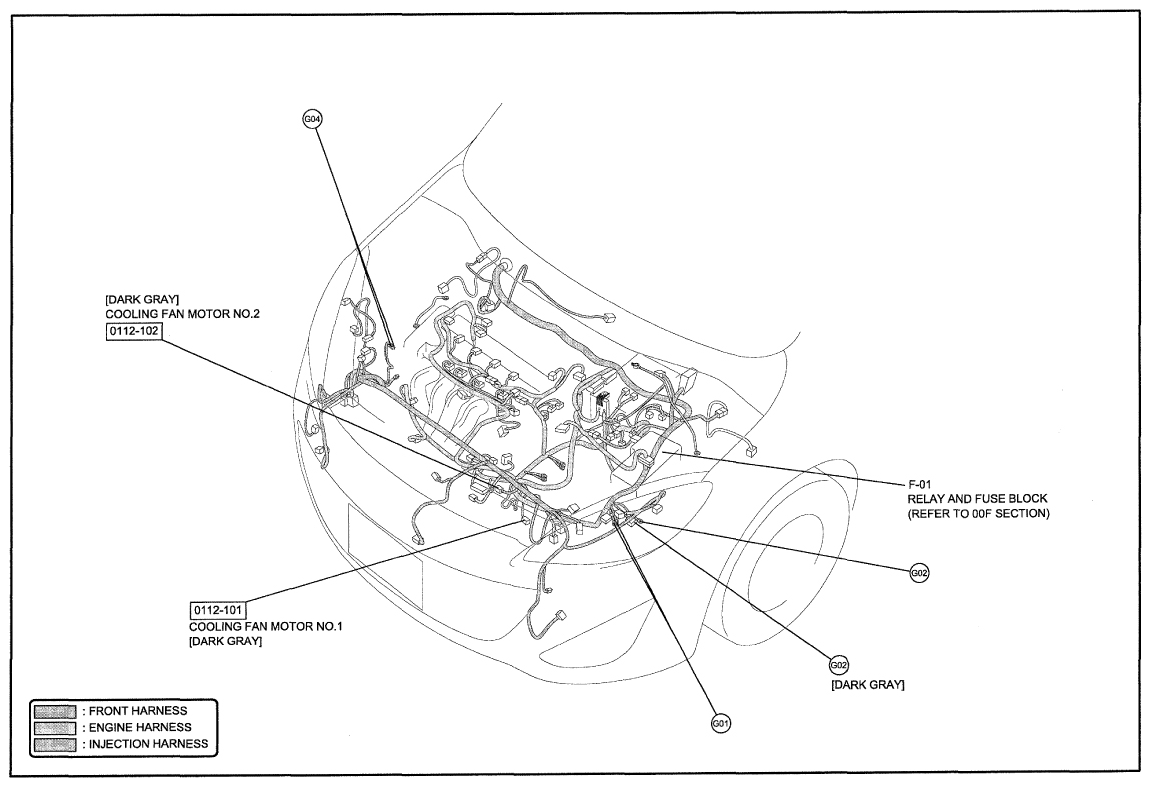

Fig 2: Cooling System Wiring Diagram - 0112-1 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
