OEM Wiring System
›
Engine
›
Fuel System
Fuel System

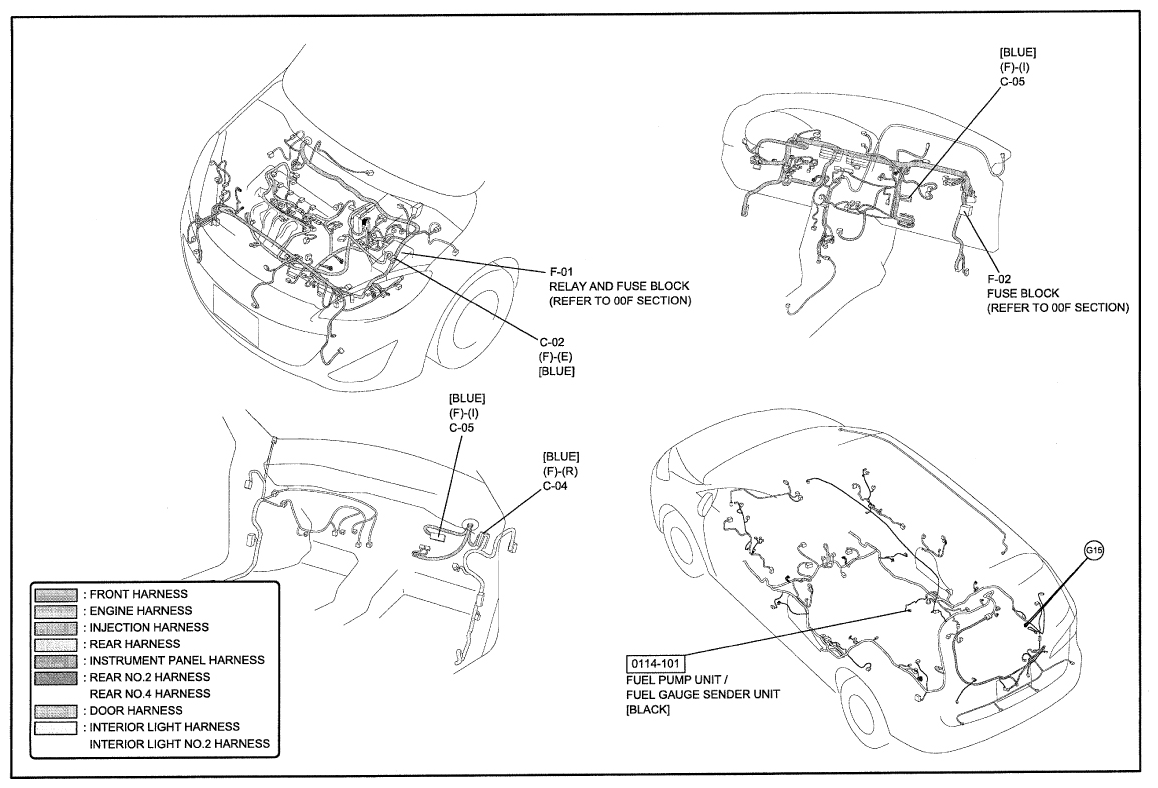

Fig 1: Fuel System Wiring Diagram - 0114-1 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

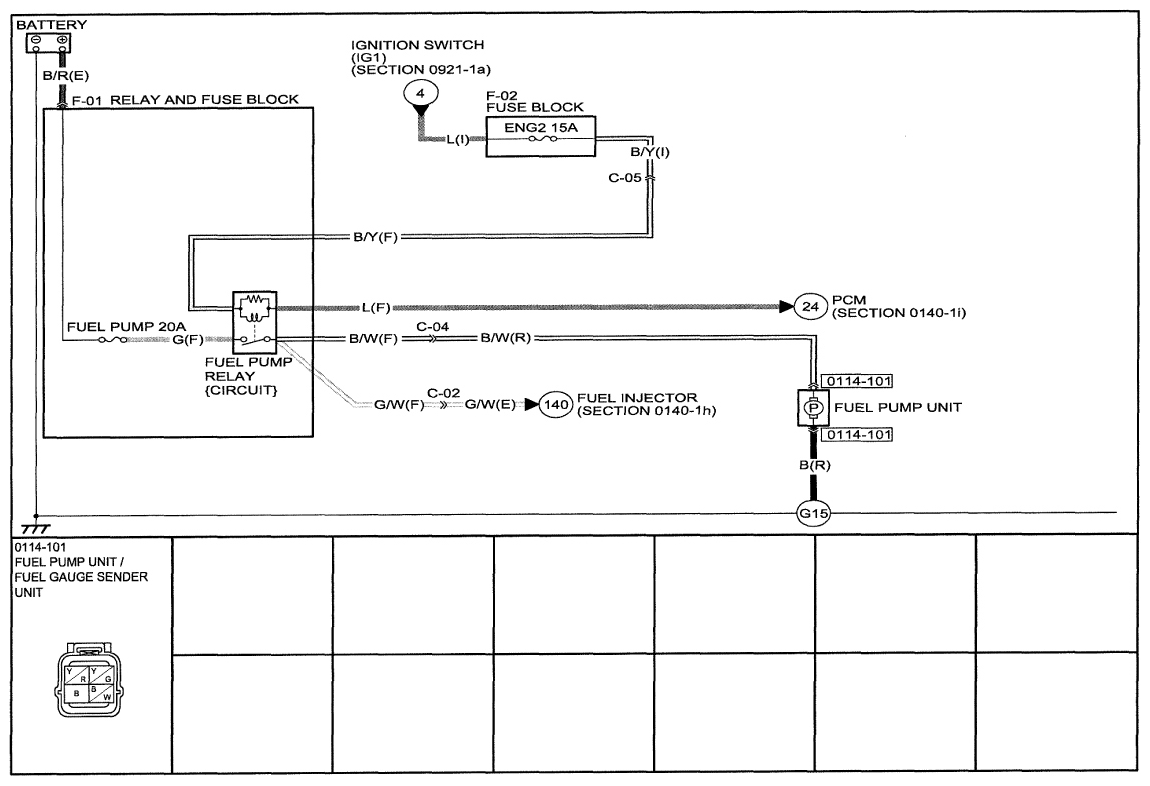

Fig 2: Fuel System Wiring Diagram - 0114-1 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
