Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring System
›
Engine
›
Starting System
Starting System

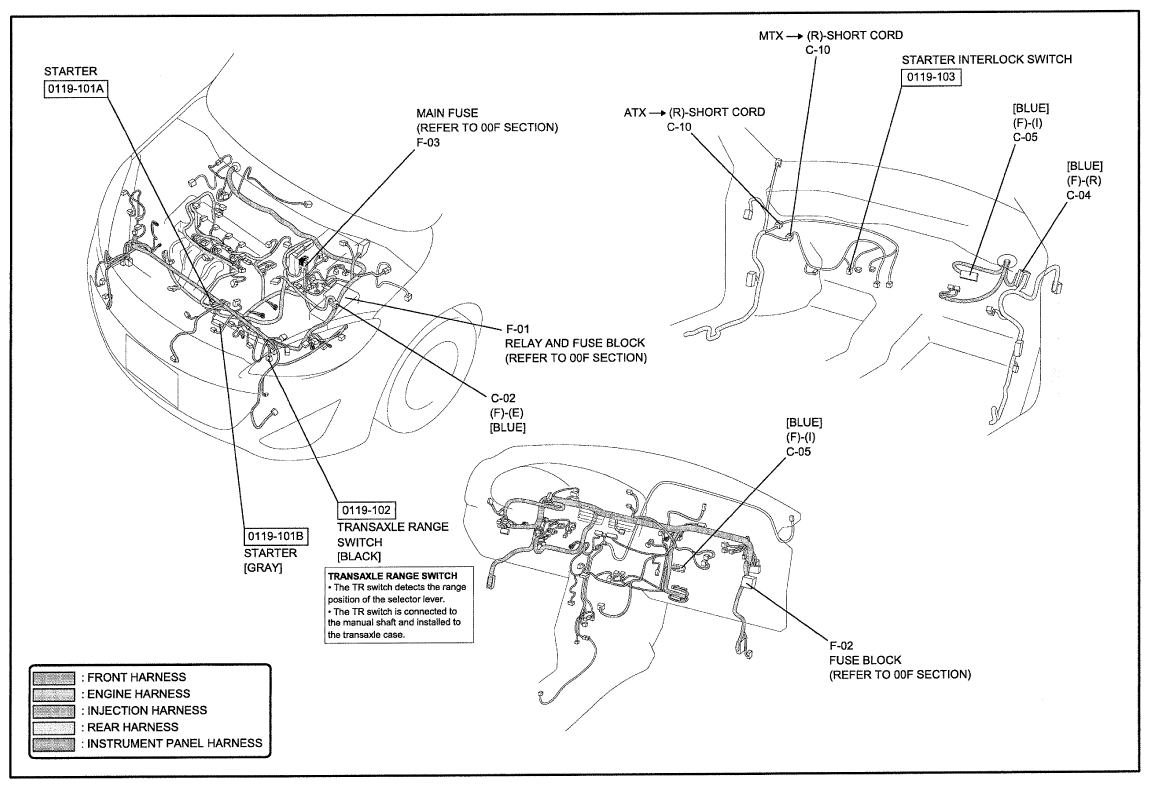

Fig 1: Starting System Wiring Diagram - 0119-1 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

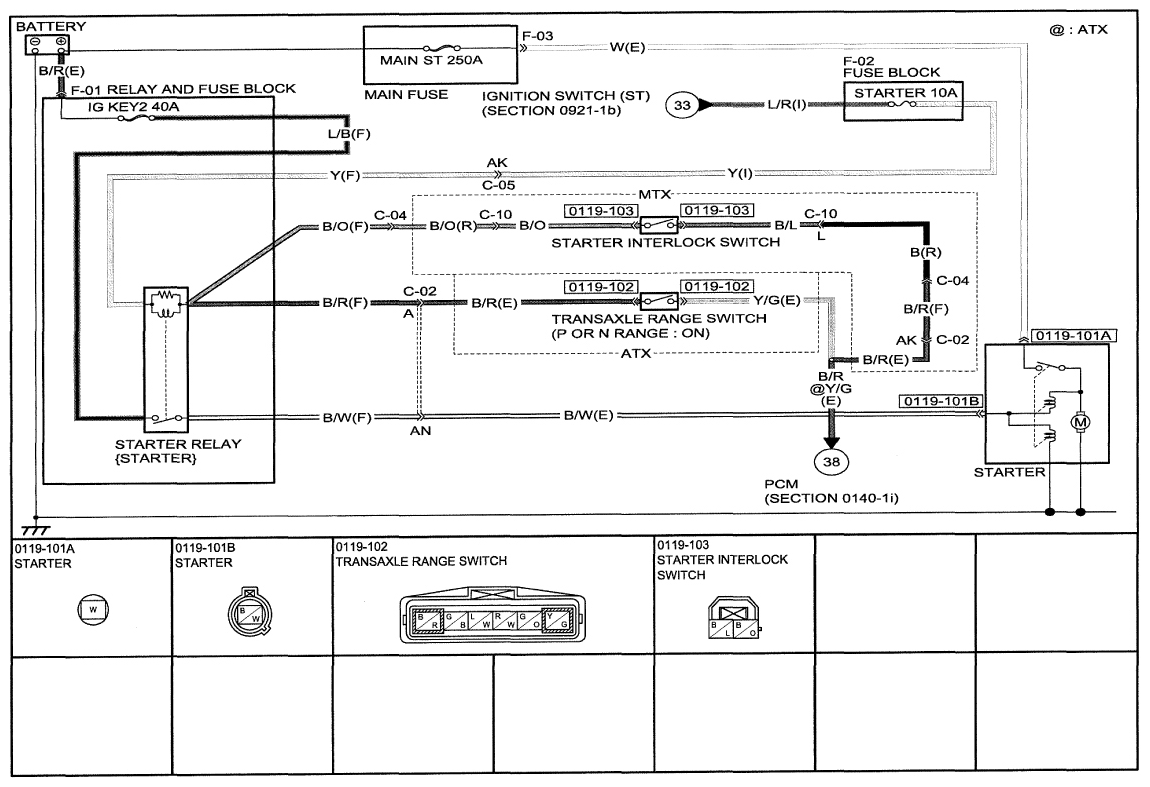

Fig 2: Starting System Wiring Diagram - 0119-1 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
