Battery Box Installation Note
Battery Box Installation Note
Assemble with battery box hooks E aligned with the battery tray holes at two points.

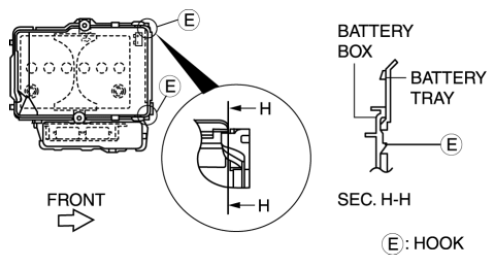

Fig 1: Battery Box Hooks E With Battery Tray Holes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
