Oil Cooler Installation Note

Align one of the positioning tabs on the oil cooler as shown below to the oil filter adapter hole, and install the oil cooler.

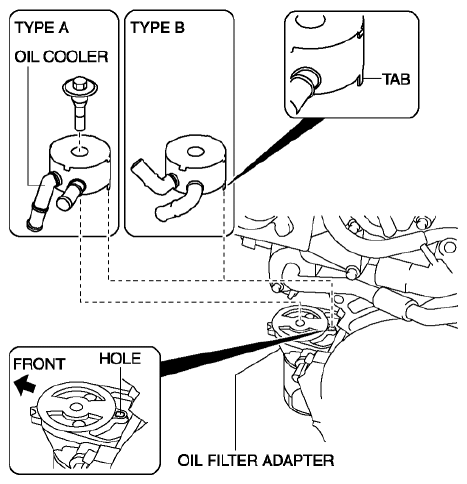

Fig 1: Oil Cooler
Courtesy of MAZDA MOTORS CORP.
