Exhaust System Insulator Removal/Installation Note: Notes

Remove the member.

Fig 1: Member Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust system insulator in the order shown below.
Install in the reverse order of removal.

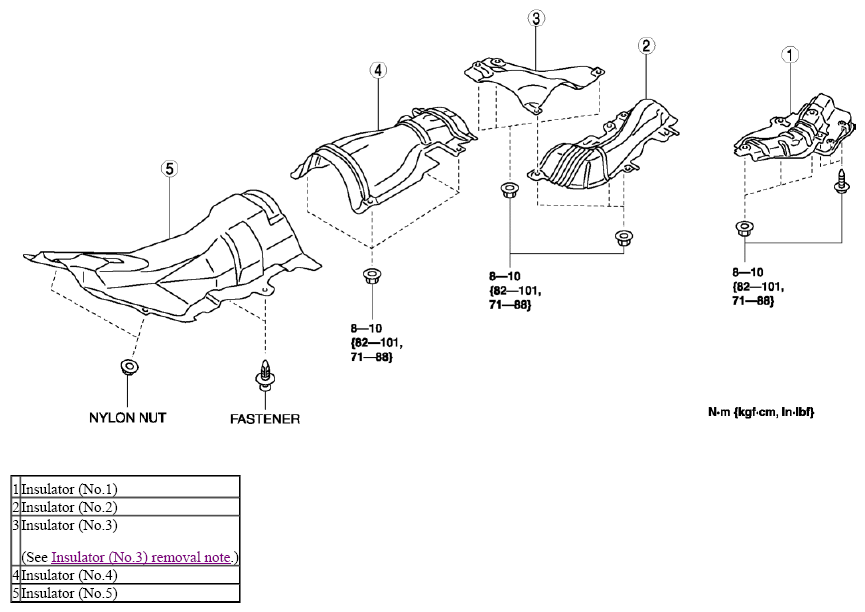

Fig 2: Exhaust System Insulator Fastener And Nylon Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
