Joint Hose Installation Note
Joint Hose Installation Note
Install the joint hose as shown below.

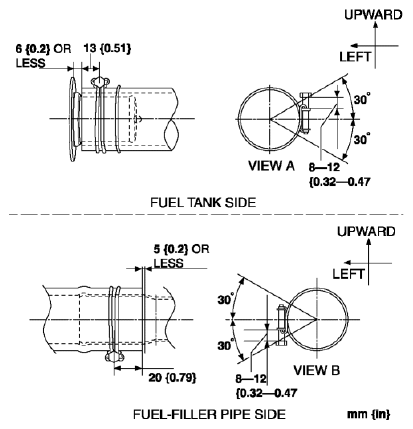

Fig 1: Installing Joint Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
