Disconnecting Connectors

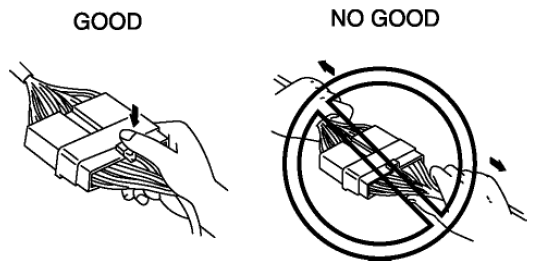

When disconnecting a connector, grasp the connectors, not the wires.

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.

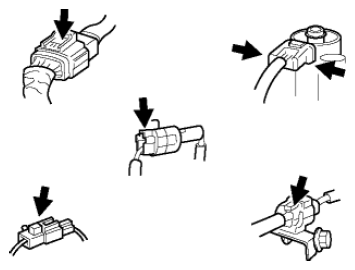

Connectors can be disconnected by pressing or pulling the lock lever as shown.

Fig 2: Locating Connectors Lock Lever
Courtesy of MAZDA MOTORS CORP.
