| DETECTION CONDITION |
- Battery backup voltage is within 2.5 V
Diagnostic support note
- The check engine light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The automatic transaxle warning light does not illuminate.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- |

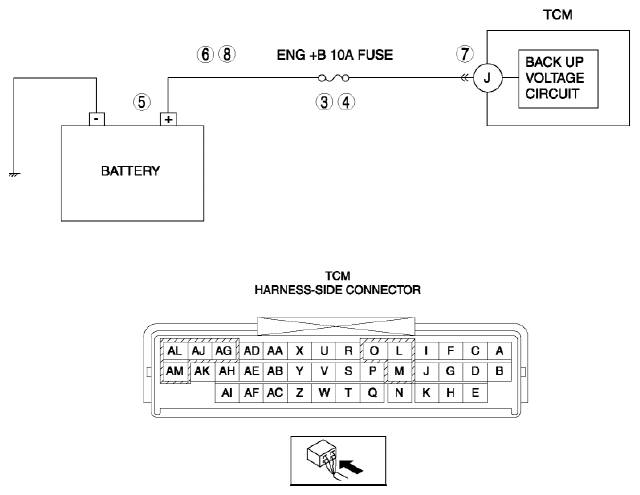

| POSSIBLE CAUSE |
- Blown ENG +B 10A fuse
- ENG +B 10A fuse connector or terminal malfunction
- Battery positive terminal malfunction
- Battery malfunction
- Short to GND in wiring harness between battery positive terminal and TCM terminal J
- TCM connector or terminal malfunction
- Open circuit in wiring harness between battery positive terminal and TCM terminal J
- TCM malfunction
|
