Symptom Troubleshooting - Automatic Transaxle
›
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

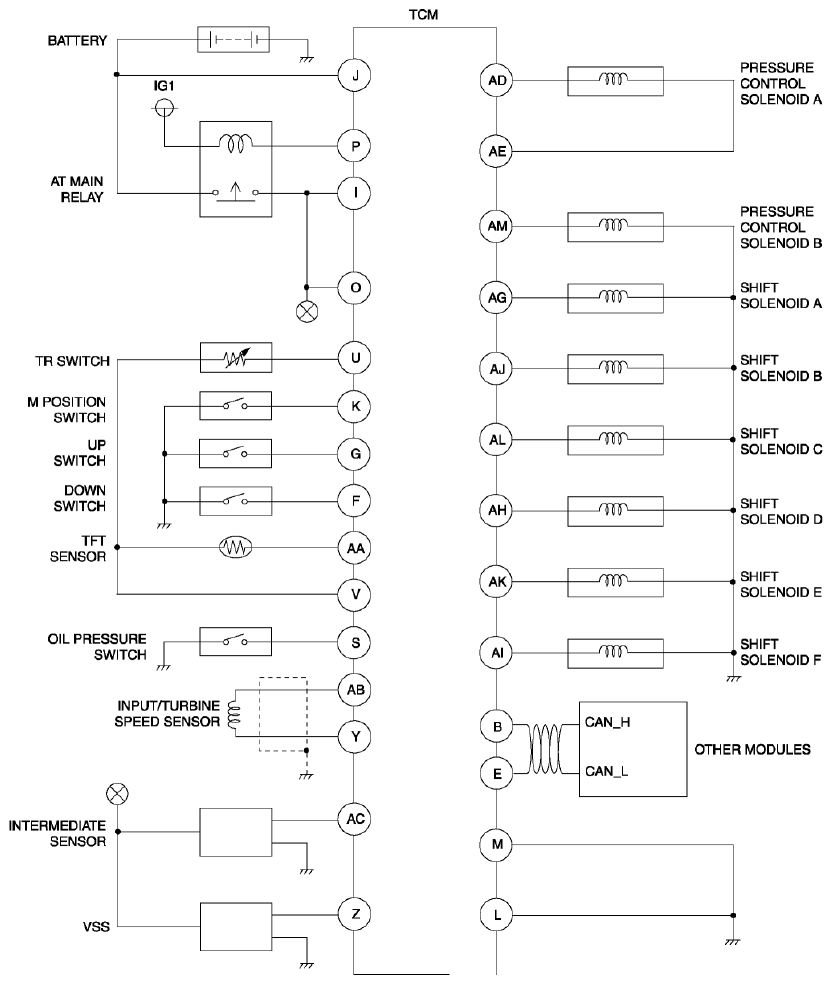

Fig 1: Automatic Transaxle Control System Wiring Diagram (FS5A-EL)
Courtesy of MAZDA MOTORS CORP.
