Quick Diagnostic Chart

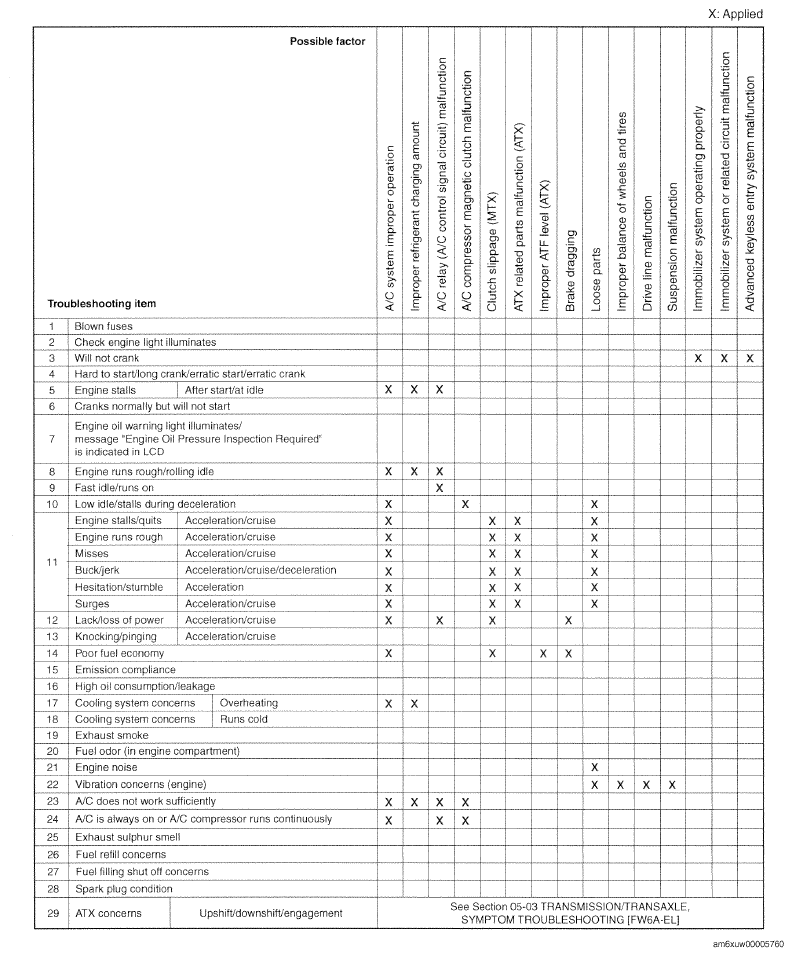

Fig 1: Quick Diagnostic Chart (SKYACTIV-G 2.5; 1 Of 8)

Courtesy of MAZDA MOTORS CORP.

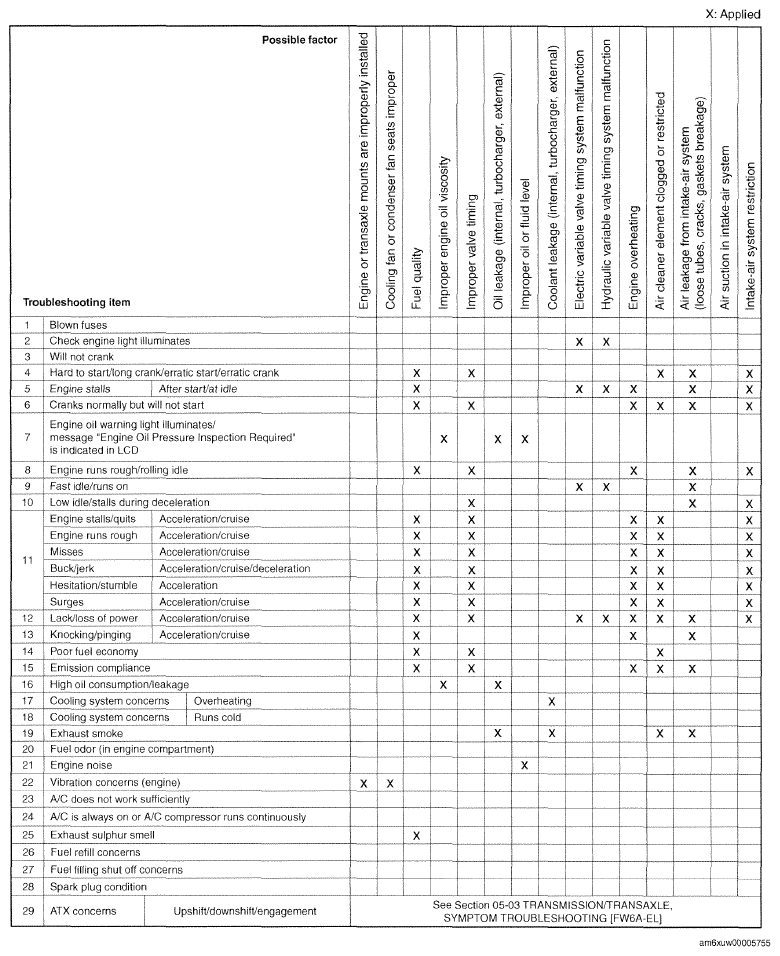

Fig 2: Quick Diagnostic Chart (SKYACTIV-G 2.5; 2 Of 8)

Courtesy of MAZDA MOTORS CORP.

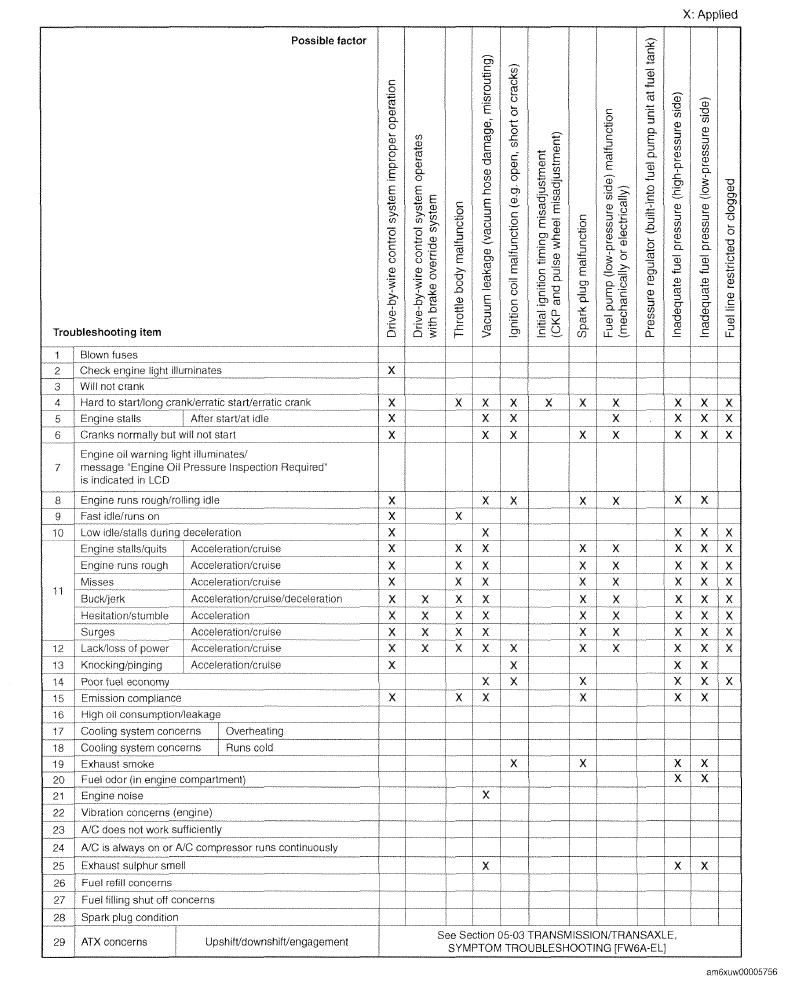

Fig 3: Quick Diagnostic Chart (SKYACTIV-G 2.5; 3 Of 8)

Courtesy of MAZDA MOTORS CORP.

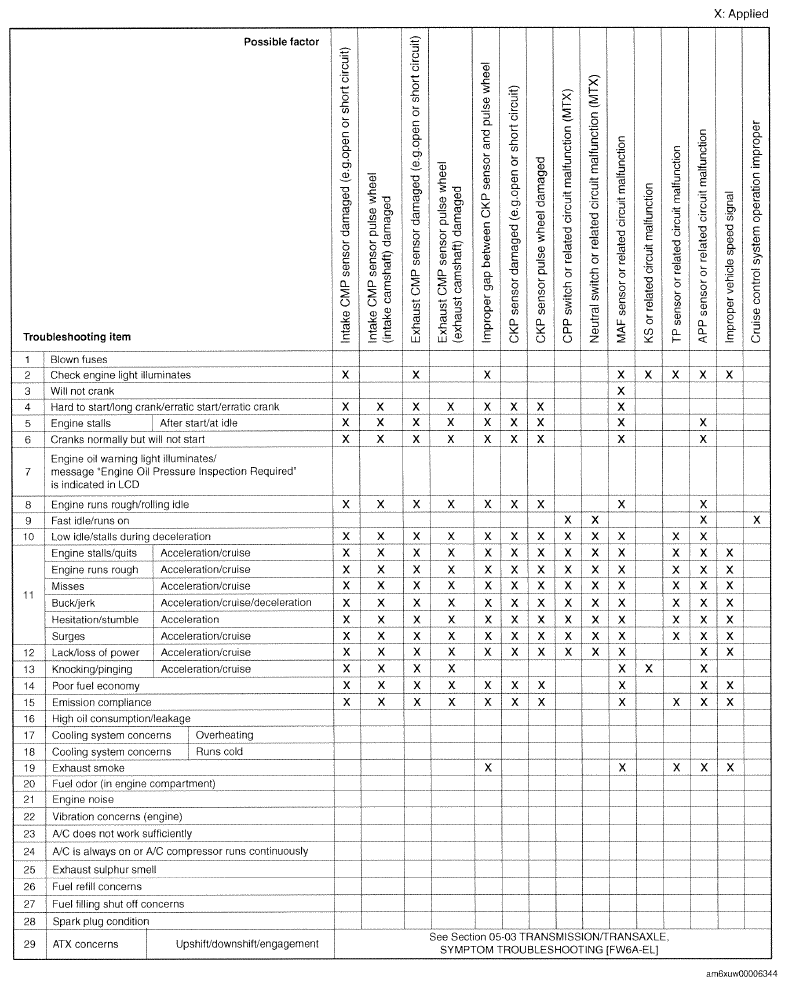

Fig 4: Quick Diagnostic Chart (SKYACTIV-G 2.5; 4 Of 8)

Courtesy of MAZDA MOTORS CORP.

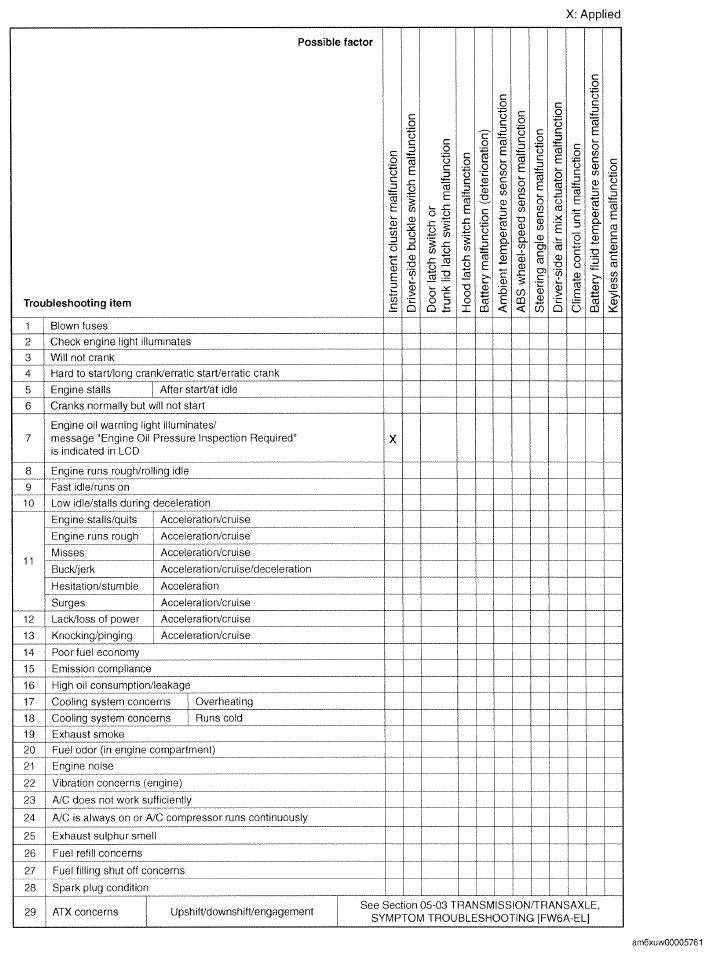

Fig 5: Quick Diagnostic Chart (SKYACTIV-G 2.5; 5 Of 8)

Courtesy of MAZDA MOTORS CORP.

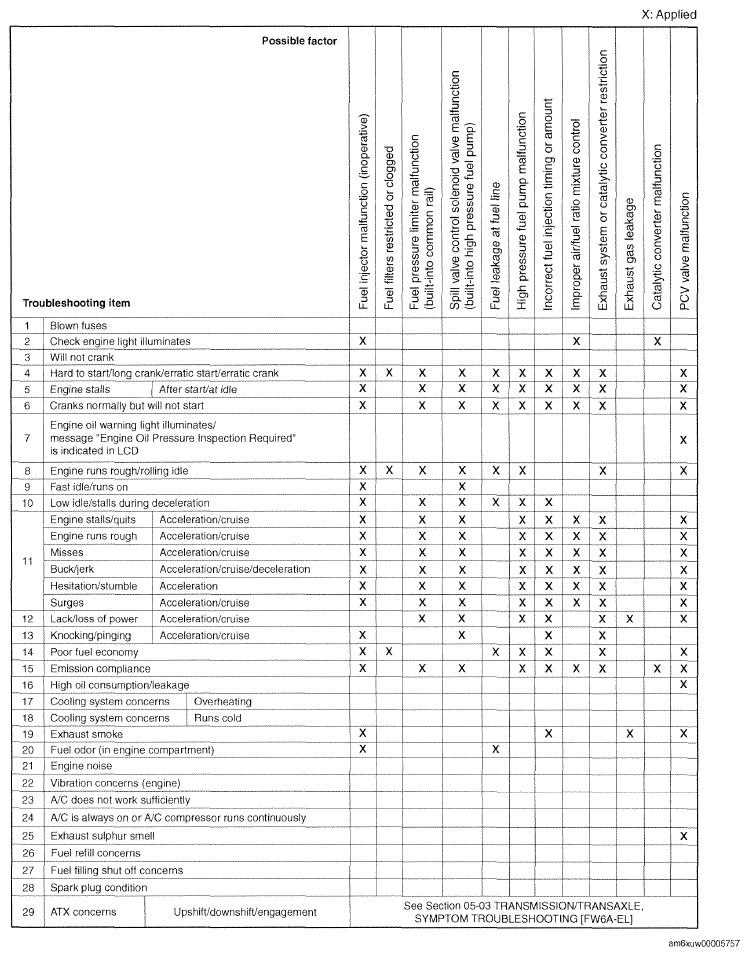

Fig 6: Quick Diagnostic Chart (SKYACTIV-G 2.5; 7 Of 8)

Courtesy of MAZDA MOTORS CORP.

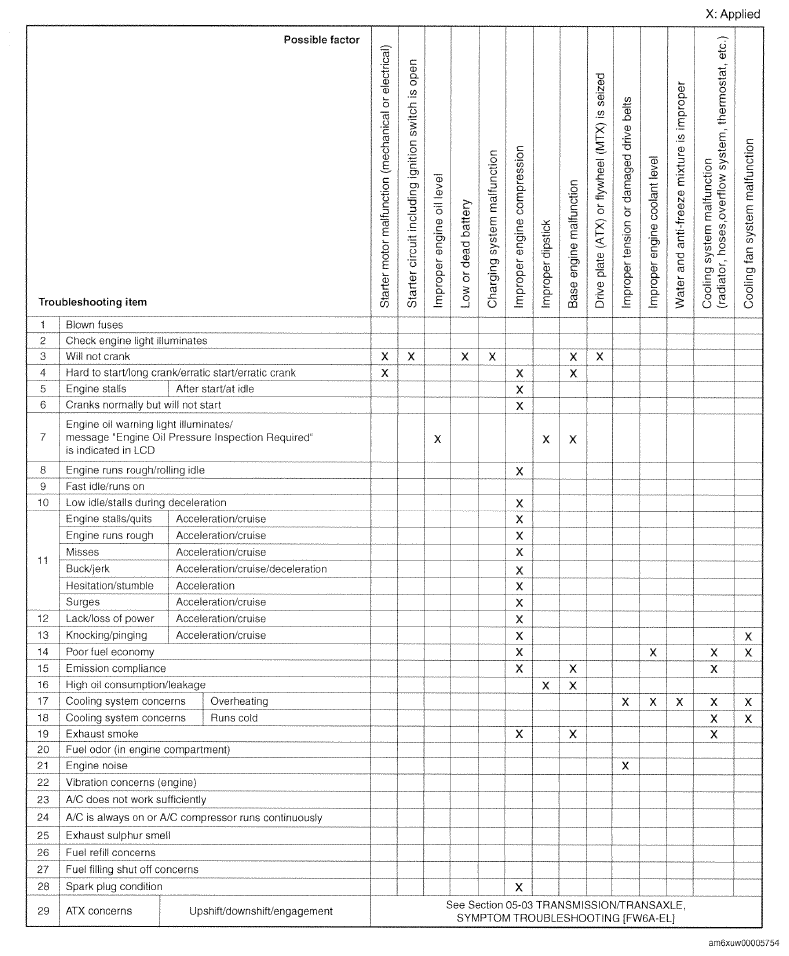

Fig 7: Quick Diagnostic Chart (SKYACTIV-G 2.5; 8 Of 8)

Courtesy of MAZDA MOTORS CORP.

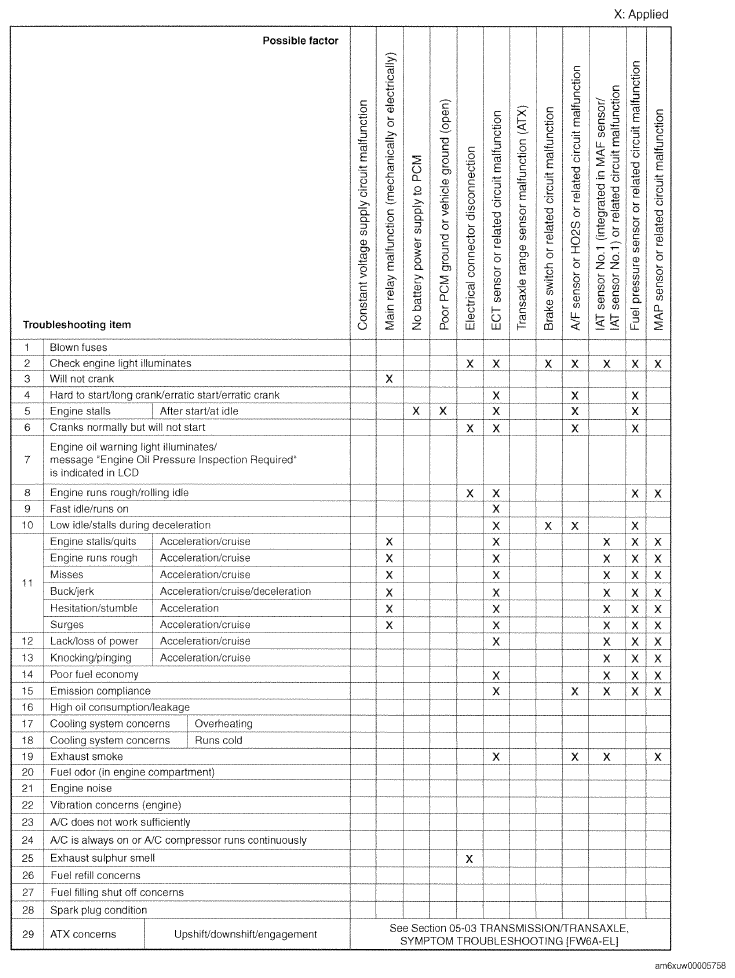

Fig 8: Quick Diagnostic Chart (SKYACTIV-G 2.5; 8 Of 8)

Courtesy of MAZDA MOTORS CORP.
