Symptom Troubleshooting - Dynamic Stability Control System
›
Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

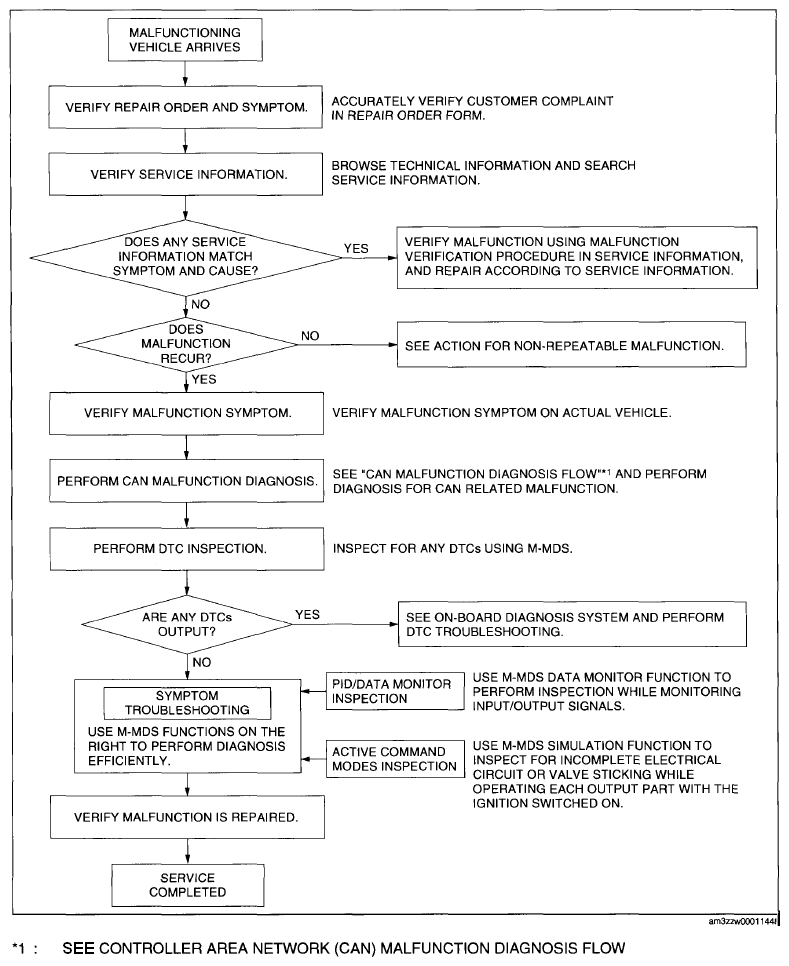

Fig 1: Troubleshooting Procedure Flow Chart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
