MAZDA Service Program (MSP42) - TOMTOM Navigation System Update (MSP42)

Publication date: 2014-01-31
Reference number: MSP42
Supersedes refnos: 09-010/14, 09-035/13

MAZDA SERVICE PROGRAM (MSP42) - TOMTOM NAVIGATION SYSTEM UPDATE

MAZDA SERVICE PROGRAM (MSP42) - TOMTOM NAVIGATION SYSTEM UPDATE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 09-010/14, MSP42, Date of Issue:  January 30, 2014
MAZDA: 2013-2014 CX-5; 2013-2014 CX-9; 2013-Mazda3; 2014-2015 Mazda6
SERVICE CATEGORY: Body and Accessories
SECTION: Campaign
Superceded Bulletin(s): 09-035/13, Date of Issue:  11/25/13

BULLETIN NOTE

APPLICABLE MODEL(S)/VINS

2013-2014 CX-5 vehicles (with factory or dealer installed TomTom navigation) produced between Dec 15, 2011 and Dec 17, 2013

2013-2014 CX-9 vehicles (with factory or dealer installed TomTom navigation) produced between Oct 1, 2012 and Dec 12, 2013

2013-Mazda3 vehicles (with factory or dealer installed TomTom navigation) produced between Sept 3, 2012 and June 7, 2013

2014-2015 Mazda6 vehicles (with factory or dealer installed TomTom navigation) produced between Oct 25, 2012 and Dec 10, 2013

DESCRIPTION

An updated version of the software for the TomTom navigation system has become available. Under this MSP42, the navigation system will be reflashed to the updated version using a SD card. This software update will eliminate canceling voice recognition when vehicle speed transitions past 4mph and improve the following:

NOTE:
  • UNDER THE MAZDA SERVICE PROGRAM (MSP42), ALL CURRENT DEALER INVENTORY AND RETAILED VEHICLES FOUND TO BE WITHIN THE ABOVE VIN AND PRODUCTION DATES RANGES MUST BE REPAIRED ACCORDING TO THE INSTRUCTIONS CONTAINED IN THIS SERVICE BULLETIN.
  • BEFORE PERFORMING ANY REPAIR, VALIDATE THAT THE VEHICLE IS APPLICABLE TO THIS PROGRAM BY PERFORMING AN "eMDCS WARRANTY VEHICLE INQUIRY" AND VERIFYING THE VEHICLE DISPLAYS CAMPAIGN "MSP42" AND ITS CAMPAIGN STATUS DISPLAYS "OPEN". SEE "VEHICLE INSPECTION PROCEDURE " BELOW.
NOTE: VINs with dealer-installed accessory TomTom navigation may not appear on eMDCS as involved in MSP42, but repairs on these vehicles should be performed.

DEALER INVENTORY

Repair all applicable vehicles currently in dealer inventory according to the procedures contained in this service bulletin.

RETAILED VEHICLES:

When an applicable retailed vehicle is brought into the dealer for any type of repair or scheduled maintenance, perform an eMDCS Warranty Vehicle Inspection and check the status of MSP42. If status of MSP42 is "OPEN" repair the vehicle according to the procedures contained in this service bulletin.

VEHICLE INSPECTION PROCEDURE

  1. Verify the vehicle is within the following production date ranges:

    2013-2014 CX-5 vehicles (with factory or dealer installed TomTom navigation) produced between Dec 15, 2011 and Dec 17, 2013

    • VIN Range: JM3KE****D0 100063 - 169130 and JM3KE****E0 300043 - 426001

    2013-2014 CX-9 vehicles (with factory or dealer installed TomTom navigation) produced between Oct 1, 2012 and Dec 12, 2013

    • VIN Range: JM3TB****D0 400004 - 425228 and JM3TB****E0 425229 - 432408

    2013-Mazda3 vehicles (with factory or dealer installed TomTom navigation) produced between Sept 3, 2012 and June 7, 2013

    • JM1BL****D1 720440 - 843866

    2014-2015 Mazda6 vehicles (with factory or dealer installed TomTom navigation) produced between Oct 25, 2012 and Dec 10, 2013

    • VIN Range: JM1GJ****E1 100027 - 162747 and JM1GJ****F1 162757 - 163966
      • If the vehicle is within the above VIN and production date ranges and has either factory or dealer installed TomTom navigation, proceed to Step 2.
      • If the vehicle is not within the above VIN and production date ranges, return the vehicle to the customer or inventory.
      NOTE: Some vehicles within this range have already been reworked at the port.
  2. Perform a Warranty Vehicle Inquiry using your eMDCS System and inspect the vehicle for a Campaign Label MSP42  attached either to the vehicle's bulkhead or to the vehicle's hood. Refer to eMDCS System - Warranty Vehicle Inquiry Results table below.
    NOTE: Verify the campaign number as the vehicle may have multiple labels.
    G09119863
    NOTE: VINs with dealer-installed accessory TomTom navigation may not appear on eMDCS as involved in MSP42, but repairs on these vehicles should be performed.

    eMDCS System - Warranty Vehicle Inquiry Results

WARRANTY VEHICLE INQUIRY RESULTS

If eMDCS displays: Campaign Label is: Action Required:
"Campaign: MSP42 Open" Present Contact the Mazda Corporate Dealer Assistance Group at (877) 727-6626 to update vehicle history
Not present Proceed to "INSPECTION PROCEDURE "
"Campaign: MSP42 Closed" Present Return vehicle to inventory or customer
Not present Complete a label and apply it to vehicle's bulkhead or hood
"Campaign: MSP42 Open" or "Closed" is not displayed Does not apply Campaign does not apply to this vehicle. Return the vehicle to inventory or customer

REPAIR PROCEDURE

Downloading Update Software to a SD card

  1. Insert a new blank 512 MB (minimum) to 16 GB (maximum) SD card into the SD card slot of a computer with internet access. Make sure the SD card is in the "unlocked" position.
    NOTE: DO NOT use the customer's MAP SD card to update the system.
  2. Go to "Start" and select "Computer," then double-click on the SD card "removable disk".
  3. Delete any existing files.
  4. Confirm that no files are left on the SD card.
  5. Log on to MS3 and select "IDS/Infotainment."
    G09119864
  6. Select "TomTom Updates."
    G09119865
  7. Select "Click Here" to read the TomTom - End-User License Agreement (EULA).
  8. After reading the TomTom - EULA, select "I AGREE" to gain access to the update file.
  9. Save the "10.851.1441501_ECR9.5.1-CAB-Fuji.cab" to the desktop, then double click to open. The two files needed are release.nfo and ttsystem.
  10. Copy the two update files to the SD card.
    NOTE: The update files can also be copied to other SD cards.
  11. Right click the two files and select "Properties" to make sure the files are "Read Only." If not, check the box to make the file "Read Only" and then select "OK."
    NOTE: The files are made "Read Only" so that the system will not erase the files off the SD card during the update process. You can then continue to use this SD card to update other vehicles.
  12. Remove the update SD card from the computer.

Reflash Procedure

  1. Turn the ignition OFF.
    NOTE: For customer vehicles, verify that the navigation system software is not the latest. See TomTom Software Version Verification Procedure .

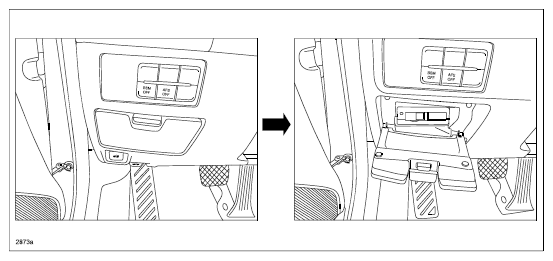

  2. Open the sliding door of the navigation control unit and remove the customer's MAP SD card. Insert the update SD card and close the sliding door.
    NOTE: The navigation control unit is located in the dash on the lower left side for Mazda6, CX-5 and CX-9 and in the center console for Mazda3.

    Mazda6

    G09119866

    CX-5 and CX-9

    G09119867

    Mazda3

    G09119868
  3. Turn the ignition ON and wait for the audio system to turn on.
  4. Press the "NAV" button to switch to the navigation screen.
    NOTE: It will take up to 1 minute to show the software update screen. First the hour glass appears, then you can select the "check mark" or wait 5 seconds and the software loading will start (progress bar is filled from 0%-100%).
    CAUTION: DO NOT remove the SD card or turn the ignition OFF during software loading.
    G09119869
  5. After the completion of the software update, the system will reboot and show a screen that says "No map data found." Turn the ignition OFF and remove the update SD card. The software update is complete.
    G09119870
  6. Insert the customer's MAP SD card and turn the ignition ON.
  7. Check that the software version is properly updated. See TomTom Software Version Verification Procedure .

Procedure Before Confirming Software Version (only for dealer inventory vehicles that have not gone through PDI)

  1. Turn the ignition OFF.
  2. Install the ROOM FUSE and AUDIO FUSE to the fuse block in the engine compartment (if not installed).
  3. Turn the ignition ON.
  4. Press the "NAV" button and the TomTom logo is displayed, indicating the navigation unit is starting up.
    G09119871
  5. If the following screen is displayed, select "Continue" to continue.
    G09119872
  6. If the following screen is displayed, continue to the next step.
    G09119873
  7. If the following screen is displayed, select "No" to continue.
    G09119874
  8. If the following screen is displayed, select "Continue" to continue.
    G09119875
  9. If the following screen is displayed, select "Decline" to continue.
    G09119876
  10. If the following screen is displayed, select "Continue" to continue.
    G09119877
  11. If the following screen is displayed, select "Yes" to continue.
    G09119878

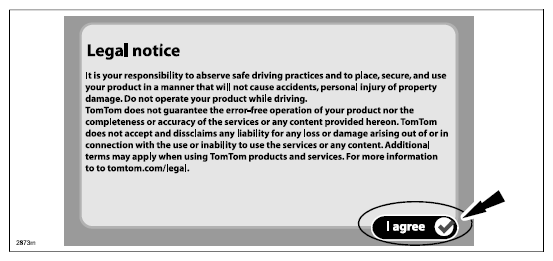

  12. If the following screen is displayed, select "I agree" to continue.
    G09119879

TomTom Software Version Verification Procedure

  1. Wait for the navigation driving screen to appear then tap the screen (A) to get to the Main menu.
    G09119880
    G09119881
  2. Select "Settings."
    G09119882
  3. Select "Status and Information."
    G09119883
  4. Select "Version Information."
    G09119884
  5. Confirm the software version is "10.851" or higher. If it is, no update is needed or update was successful during the reflash procedure.
    G09119885
    NOTE: If the software is updated using the Reflash Procedure, the version information (number) will be changed as indicated.

    App reads 10.851

Factory Reset (only for dealer inventory vehicles before delivery to customer)

CAUTION: DO NOT use the factory reset for retail vehicles. Otherwise, personal settings (such as display and sound adjustments) will be lost, including favorites information.
  1. Wait for the navigation driving screen to appear, then tap the screen (A) to get to the Main menu.
    G09119886
    G09119887
  2. Select "Settings."
    G09119888
  3. Select the "Menu left" icon.
    G09119889
  4. Select "Reset factory settings."
    G09119890
  5. Select "Yes" from the confirmation screen.
    G09119891
  6. Follow the on-screen instructions until you get to the "Welcome" screen.
    G09119892
  7. Turn the ignition OFF.

CAMPAIGN LABEL

  1. Fill out a blue "Campaign Label" (9999-95-065A-06) with the Campaign No: "MSP42", your dealer code, today's date, and affix it to the vehicle's bulkhead or hood.
    G09119893
  2. Return the vehicle to the customer or dealer inventory.

WARRANTY INFORMATION

NOTE:
  • This repair will be covered under Mazda's New Vehicle Limited Warranty term.
  • Additional diagnostic time cannot be claimed for this repair.
WARRANTY INFORMATION

Process Number AD056A
Symptom Code 99
Damage Code 99
Part Number Main Cause 7777-SP-J41
Quantity 0
Operation Number/Labor Hours: XXK39XFX/0.3 Hrs.
Sublet for One Time SD Card Reimbursement
Sublet Input: SD CARD
Sublet Code Select "Z9" from drop down menu
Sublet Amount Input: Cost of SD Card ($10 max)
Sublet Text Input: Reimbursement for SD Card
NOTE: Mazda will reimburse the dealer a "One Time" reimbursement, up to $10 maximum, for the cost of the SD card necessary to complete the reprogramming of the TomTom unit.
Claims where the sublet is claimed more than once per dealer will be denied or debited.

OWNER NOTIFICATION

TO:  Mazda Dealership Service Managers

DATE:  January 2014

SUBJECT:  Mazda Service Program (MSP) 42

2013-2014 CX-5, 2014-2015 Mazda6, 2013-2014 CX-9, 2013 Mazda3

TomTom Navigation System Software Update

Mazda Motor Corporation has decided to conduct a Mazda Service Program (MSP) on certain 2013-2014 CX-5, 2014-2015 Mazda6, 2013-2014 CX-9, 2013 Mazda3 vehicles equipped with TomTom Navigation System. This includes both factory-installed and dealer-installed accessory navigation systems for the affected models.

A new, improved version of the TomTom navigation system software is now available. Under MSP42, dealers will reprogram the navigation system of applicable vehicles to the new version. This software update includes the major fixes described below, and will also fix some additional minor concerns.

MSP42 should be completed on all applicable vehicles in dealer inventory and when owners bring their vehicles for maintenance or other service/warranty work.  Please inform the customer that the navigation unit will be reprogrammed to the updated calibration, free of charge, and explain that some personal settings (such as favorite locations and itineraries) may be lost during the reprogramming.

Warranty claims for MSP42 will be accepted during the Mazda's New Vehicle Limited Warranty term of 36 months or 36,000 miles. DSM authorization is required if the vehicle is outside the New Vehicle Limited Warranty term.

IMPORTANT: Please remind your Service Consultants to run a Warranty Vehicle Inquiry using eMDCS for every vehicle that comes through your service drive.  This report will indicate if the vehicle is applicable to MSP42, as well as any other open Special Service Program (SSP) or Recall.
NOTE: VINs with dealer-installed accessory TomTom navigation may not appear on eMDCS as involved in MSP42, but repairs on these vehicles should be performed.

A Mazda Service Program (MSP) is designed to improve customer satisfaction and reduce customer inconvenience. However, MSPs are limited to correcting issues that do not substantially affect vehicle durability, reliability, or performance. Vehicle owners are not notified by mail for MSPs.

Like a Recall or SSP, eMDCS will display MSP42 in an eMDCS Warranty Vehicle Inquiry on an applicable vehicle. The eMDCS system will display "OPEN" if the MSP repair has not been performed. It displays "CLOSED" if it has already been performed. Select the blue MSP42 on eMDCS to open Service Bulletin 09-010/14  , which provides repair procedures and warranty claim submission information. You can also access this bulletin on the MS3 site on MXConnect. A copy of the bulletin is enclosed for your convenience.

For technical assistance, call the Technical Assistance Hotline at (888) 832-8477. Select Option 3 for an English-speaking Hotline Specialist or Option 4 for a Spanish-speaking Hotline Specialist.

For warranty questions, contact the Warranty Hotline at (877) 727-6626, Option 3.

Your support in carrying out this program is greatly appreciated.

Sincerely,

G09119894

Satoshi Takahashi

Director, Technical Services Division

Mazda North American Operations
