Transfer Location Index

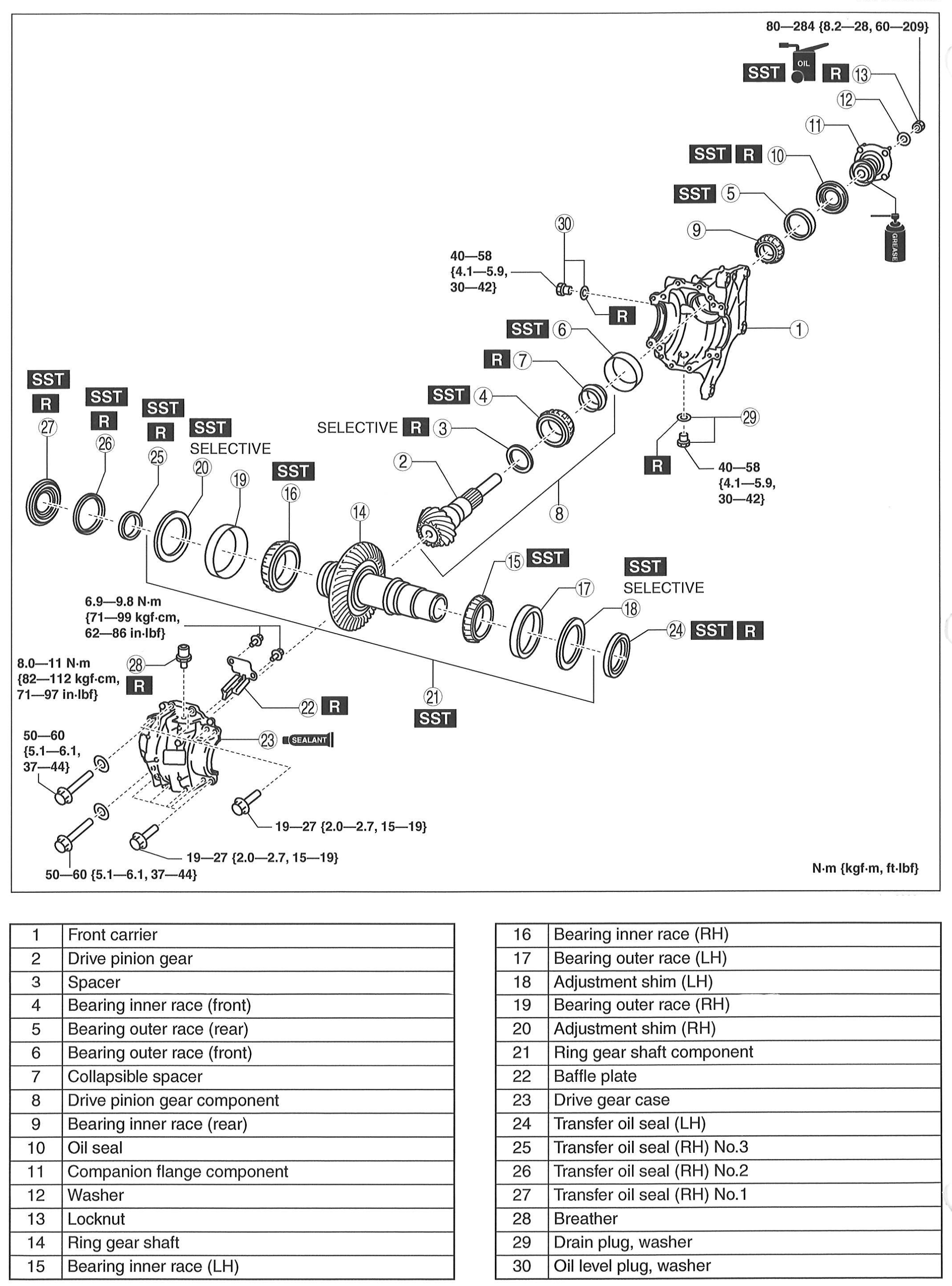

Fig 1: Transfer Assembly Exploded View With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

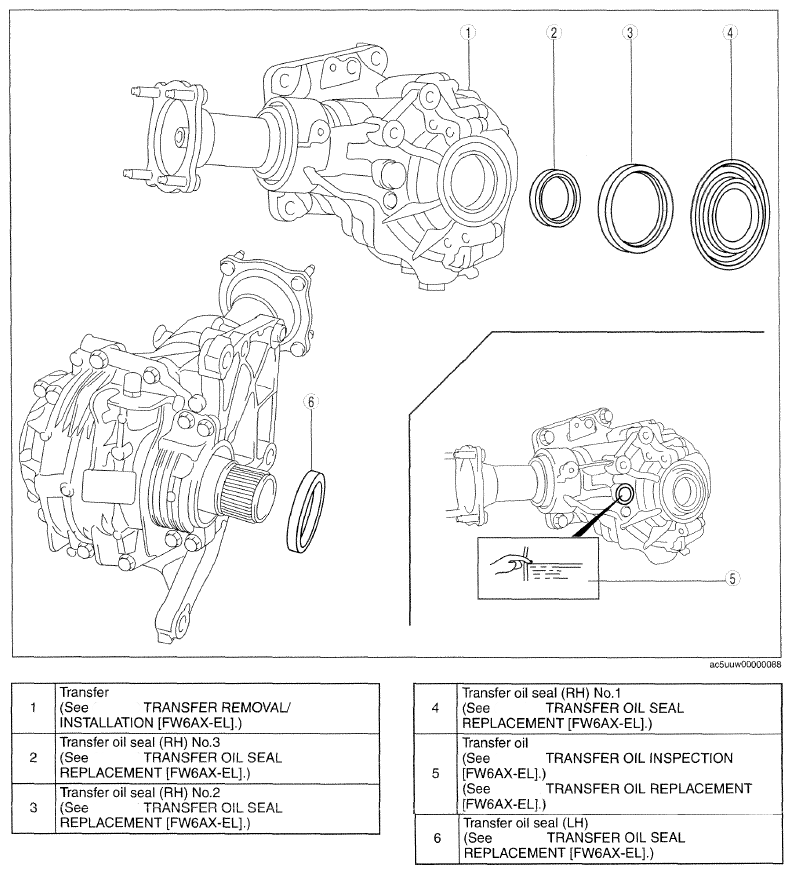

Fig 2: Transfer Components Location

Courtesy of MAZDA MOTORS CORP.

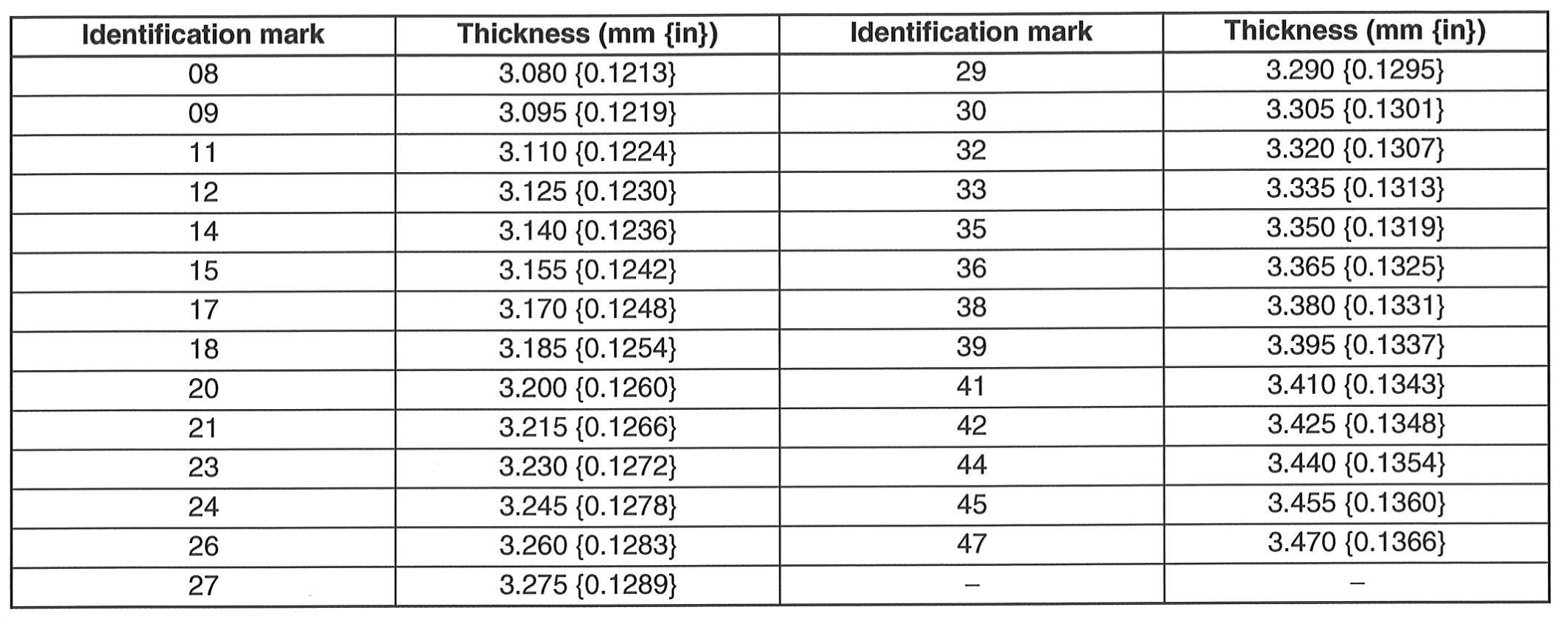

Fig 3: Pinion Shim Thickness Chart (Replace with original thickness)

Courtesy of MAZDA MOTORS CORP.
