Control System

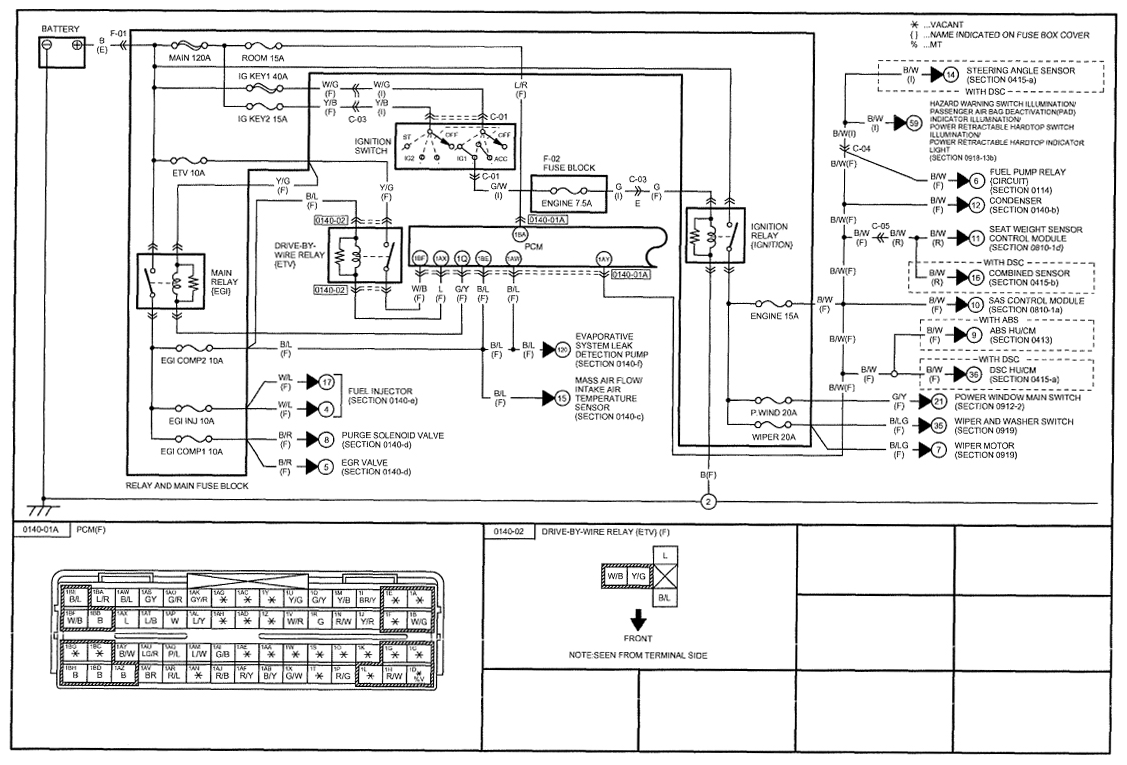

Fig 1: Control System Wiring Diagram - 0140-A (1 Of 2)

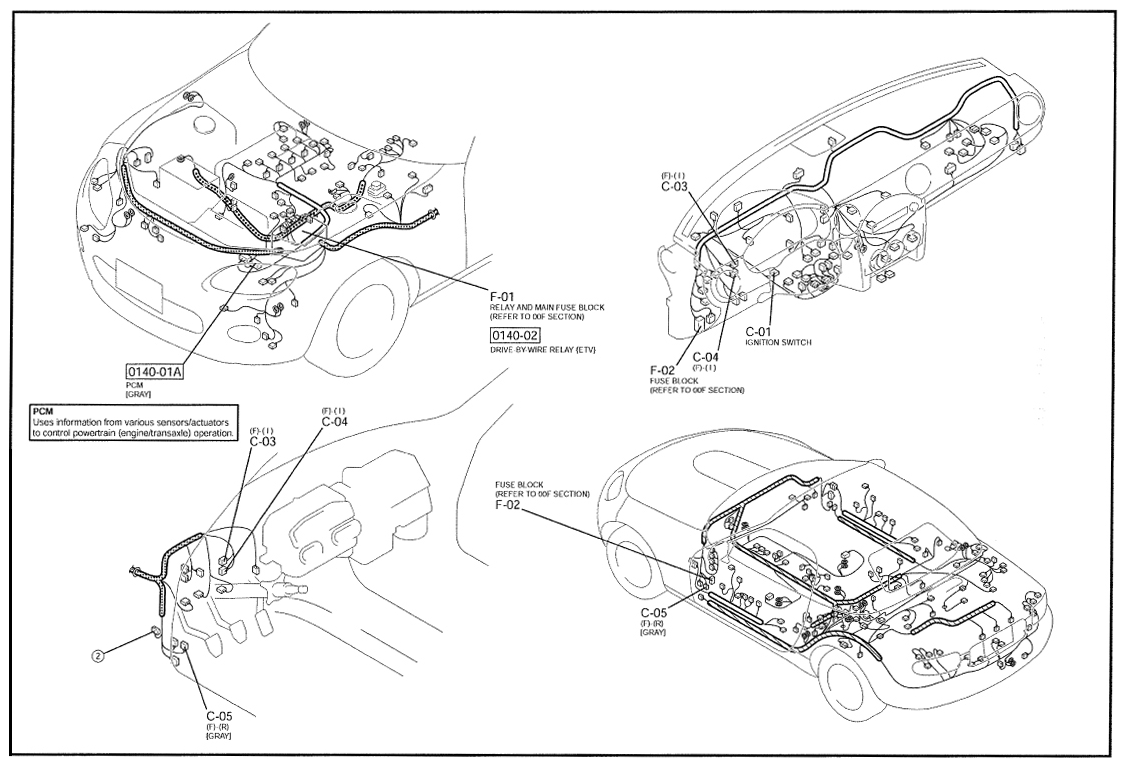

Fig 2: Control System Wiring Diagram - 0140-A (2 Of 2)

Fig 3: Control System Wiring Diagram - 0140-B (1 Of 2)

Fig 4: Control System Wiring Diagram - 0140-B (2 Of 2)

Fig 5: Control System Wiring Diagram - 0140-C (1 Of 2)

Fig 6: Control System Wiring Diagram - 0140-C (2 Of 2)

Fig 7: Control System Wiring Diagram - 0140-D (1 Of 2)

Fig 8: Control System Wiring Diagram - 0140-D (2 Of 2)

Fig 9: Control System Wiring Diagram - 0140-E (1 Of 2)

Fig 10: Control System Wiring Diagram - 0140-E (2 Of 2)

Fig 11: Control System Wiring Diagram - 0140-F (1 Of 2)

Fig 12: Control System Wiring Diagram - 0140-F (2 Of 2)

Fig 13: Control System Wiring Diagram - 0140-G (1 Of 2)

Fig 14: Control System Wiring Diagram - 0140-G (2 Of 2)
