Exhaust System Insulator Removal/installation Note: Notes

Remove the exhaust system insulator in the order shown in illustration.
Install in the reverse order of removal.

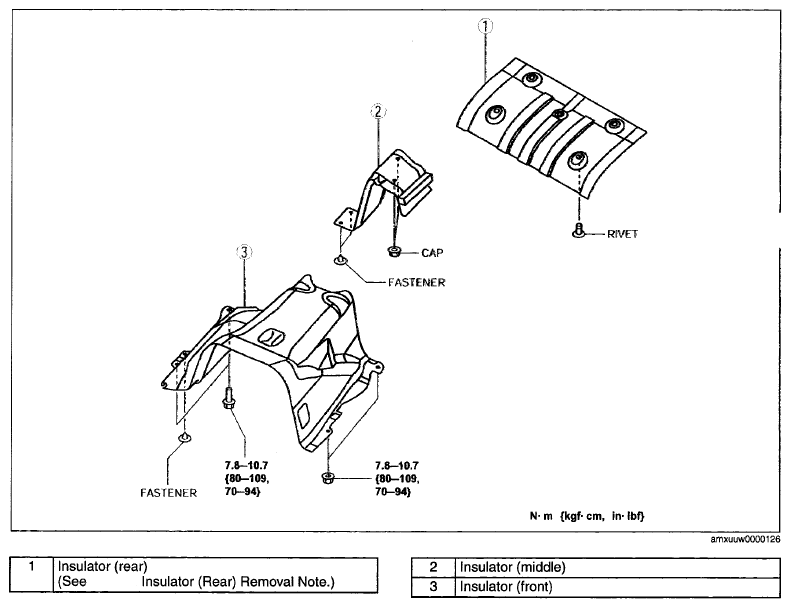

Fig 1: Exhaust System Insulator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
