Monitoring System And Control System Device Relationship Chart

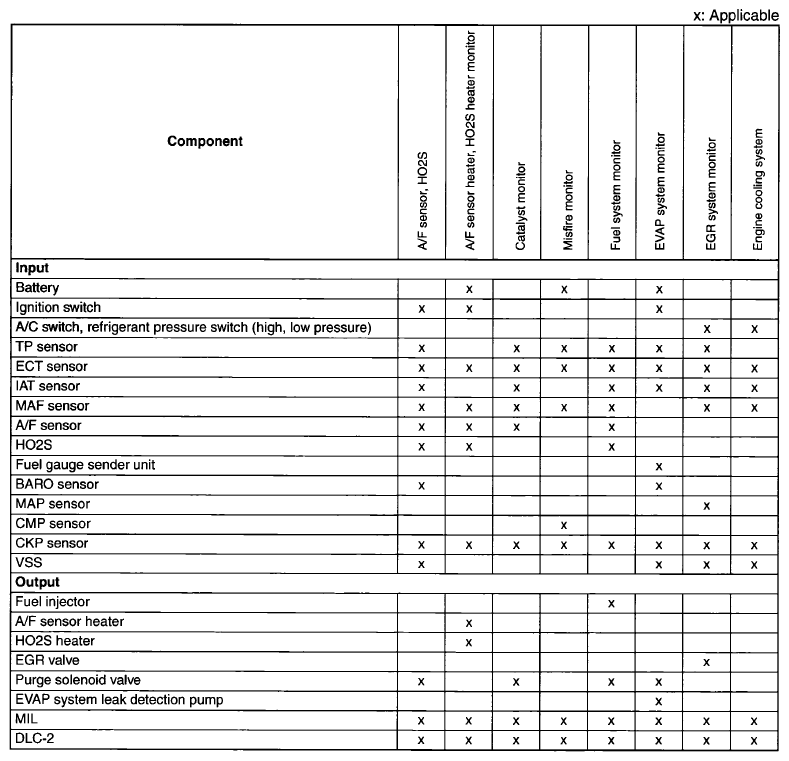

Monitoring System And Control System Device Relationship Chart
x: Applicable
Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
