Foreword
›
Troubleshooting Procedure
Troubleshooting Procedure

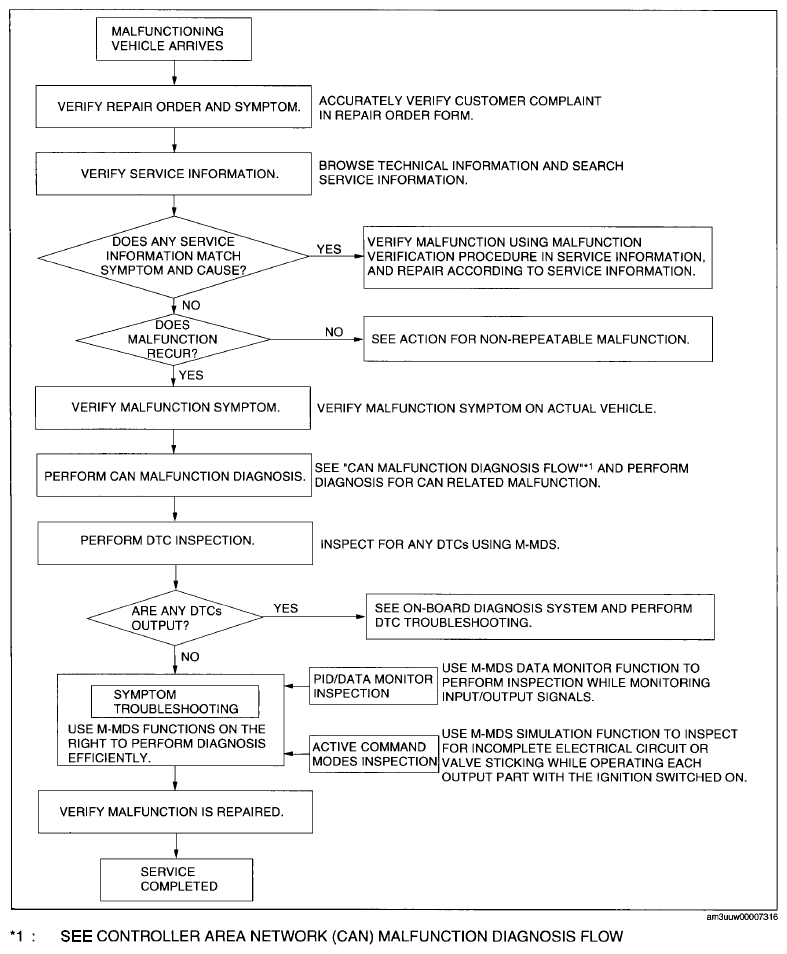

Fig 1: Troubleshooting Work Flow Chart
Courtesy of MAZDA MOTORS CORP.
