Front Fog Light Relay Connector End View

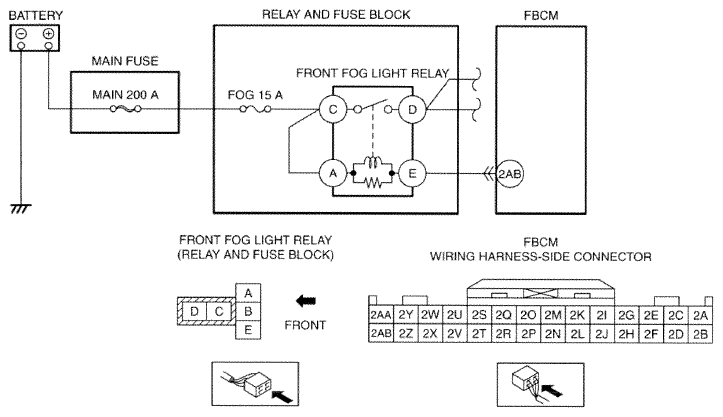

Fig 1: Front Fog Light Relay Connector End View
G09771800Courtesy of MAZDA MOTORS CORP.
