Body Control System

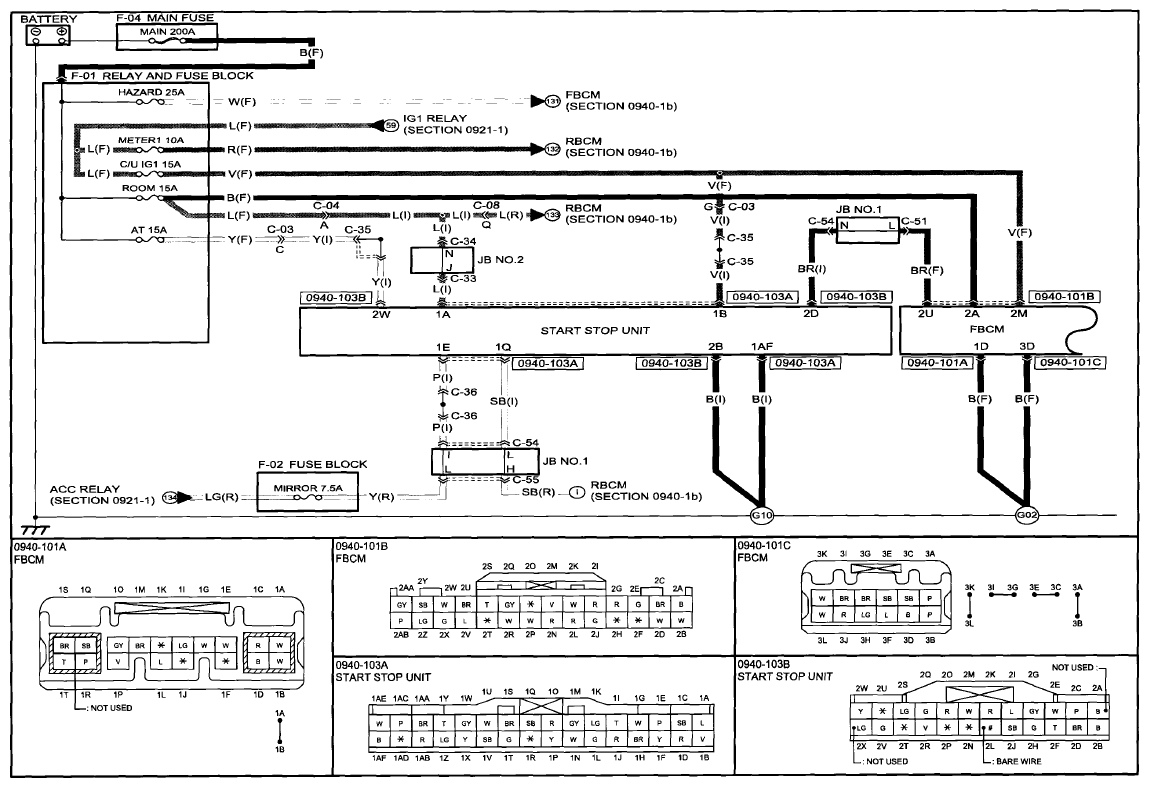

Fig 1: Body Control System Communication Diagram (0940-1A)
Courtesy of MAZDA MOTORS CORP.

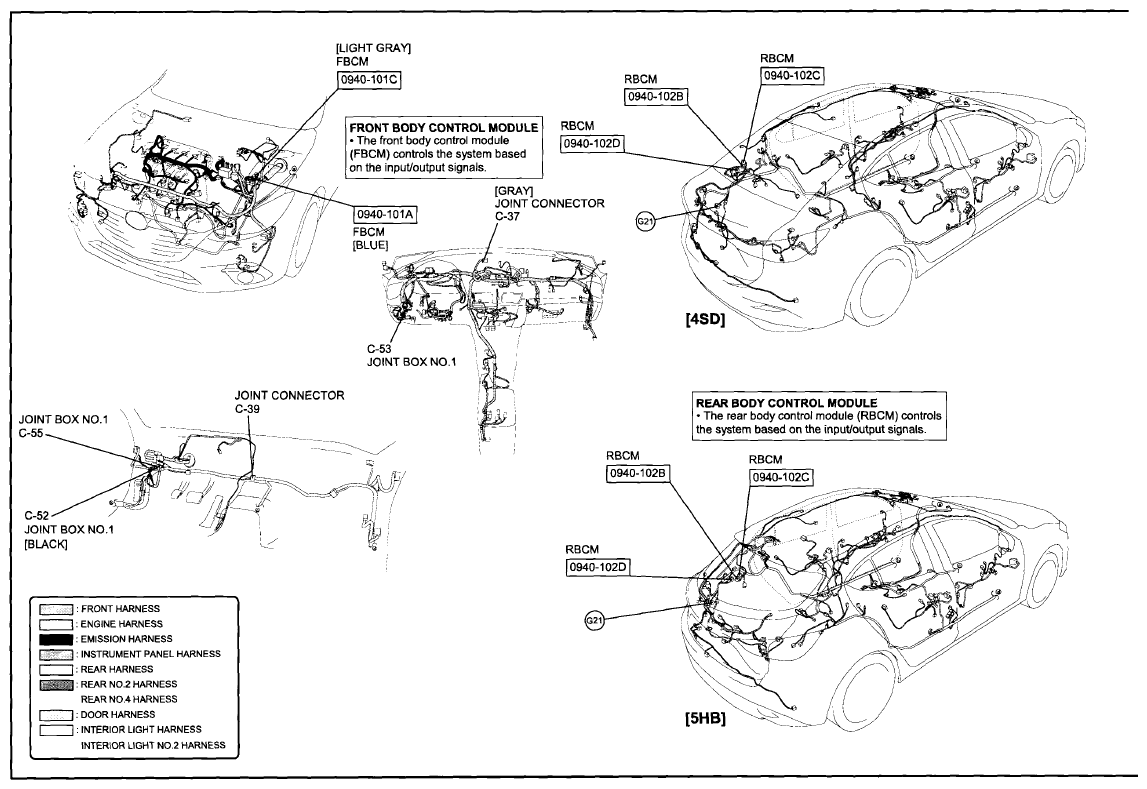

Fig 2: Body Control System Wiring Harness Connectors (0940-1A)
Courtesy of MAZDA MOTORS CORP.

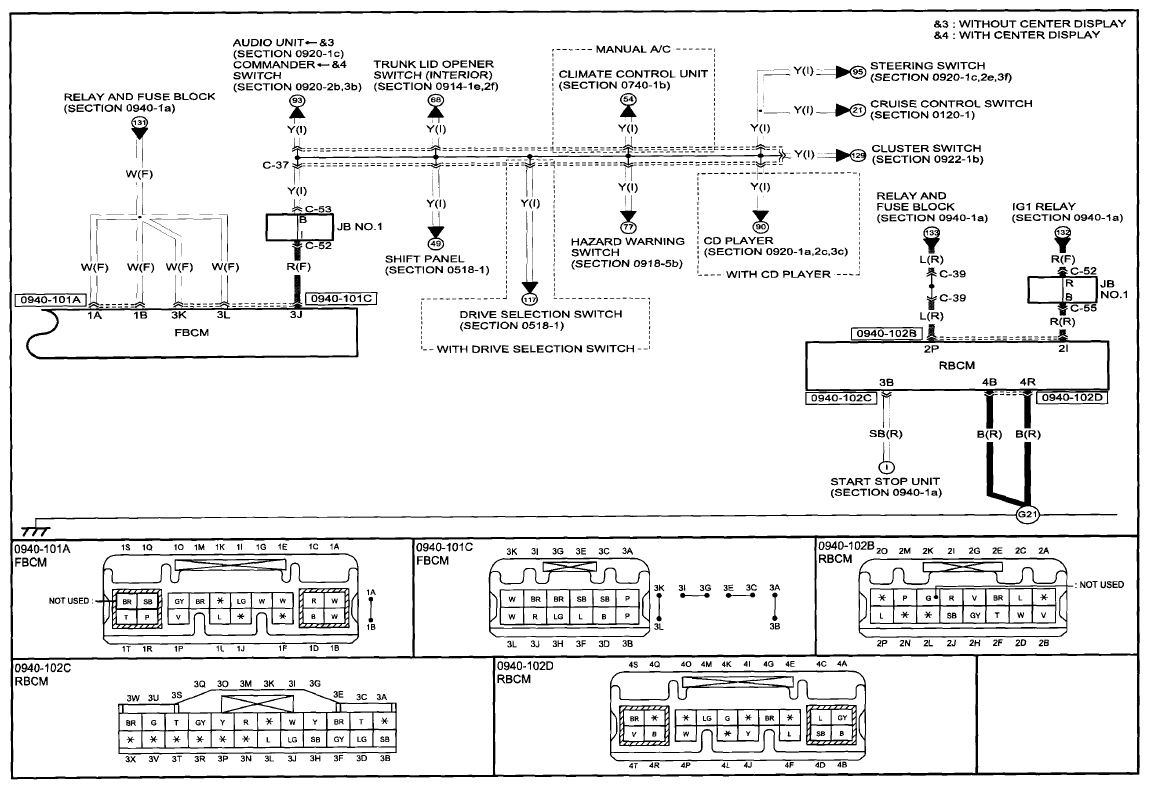

Fig 3: Body Control System Communication Diagram (0940-1B)
Courtesy of MAZDA MOTORS CORP.

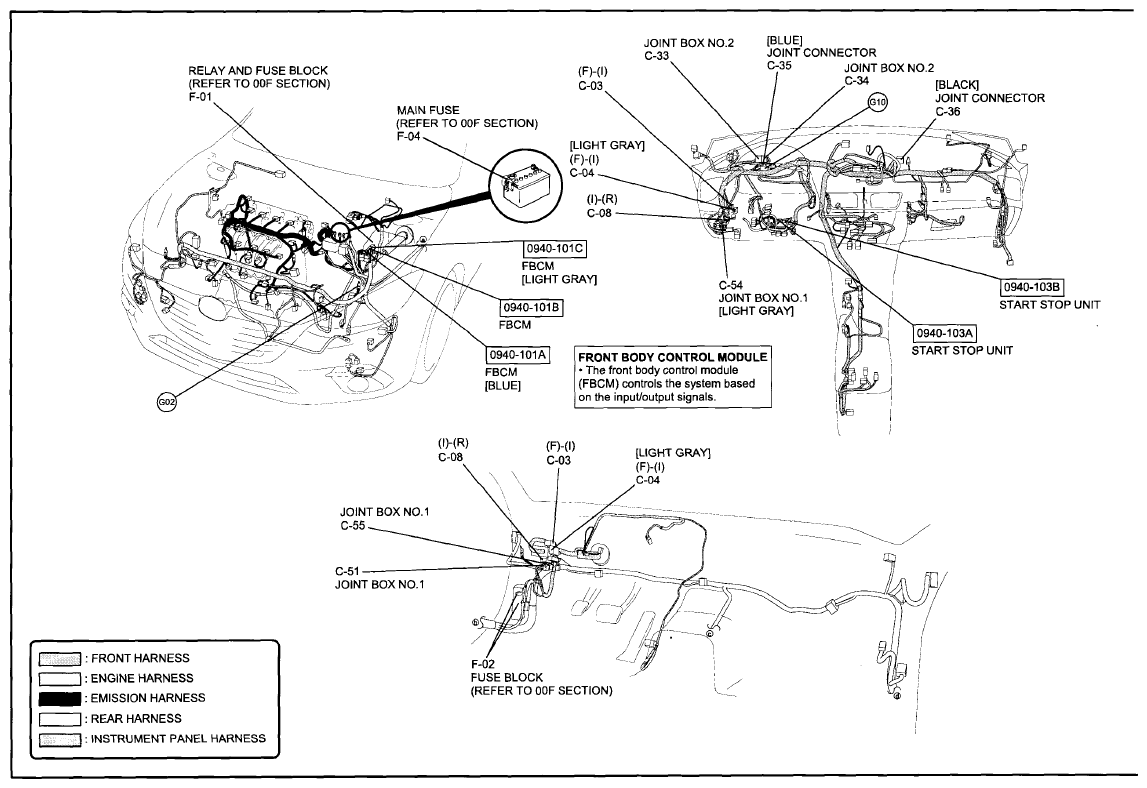

Fig 4: Body Control System Wiring Harness Connectors (0940-1B)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
