Glass/Window/Mirror Systems: Notes

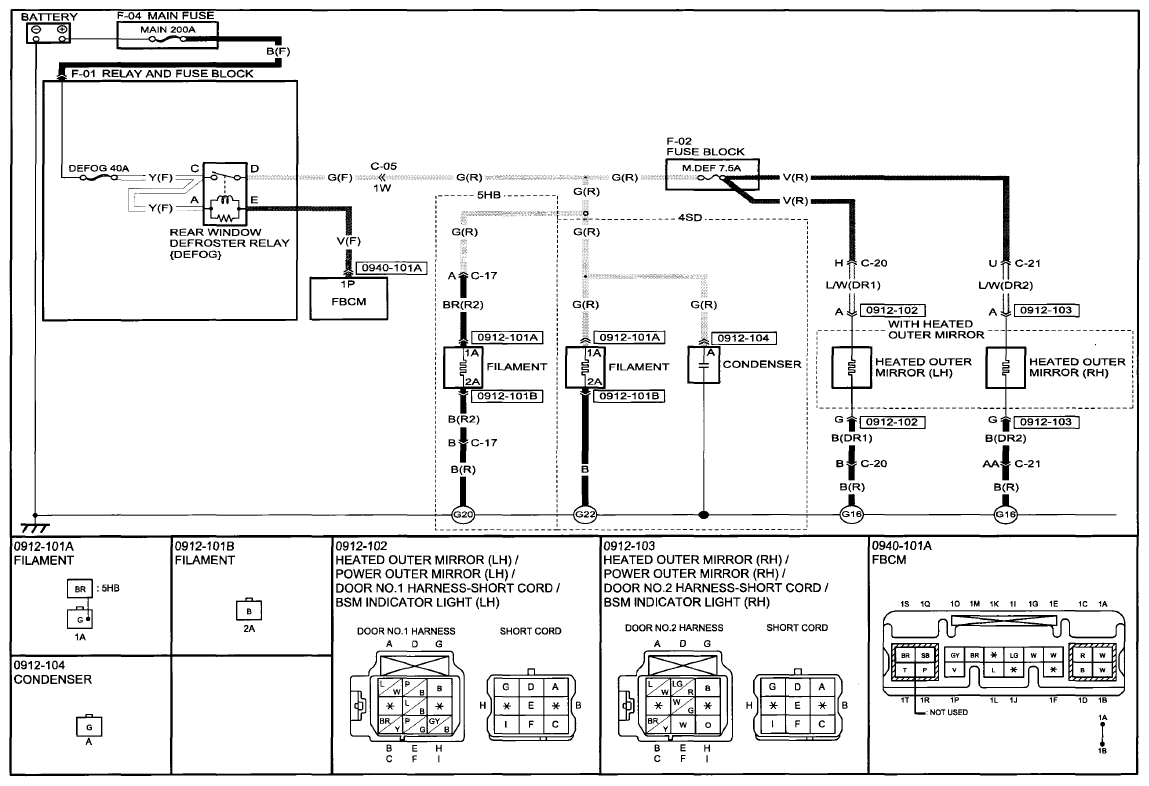

Fig 1: Rear Window Defroster (Includes Heated Outer Mirror Information) Communication Diagram (0912-1)
G09756472Courtesy of MAZDA MOTORS CORP.

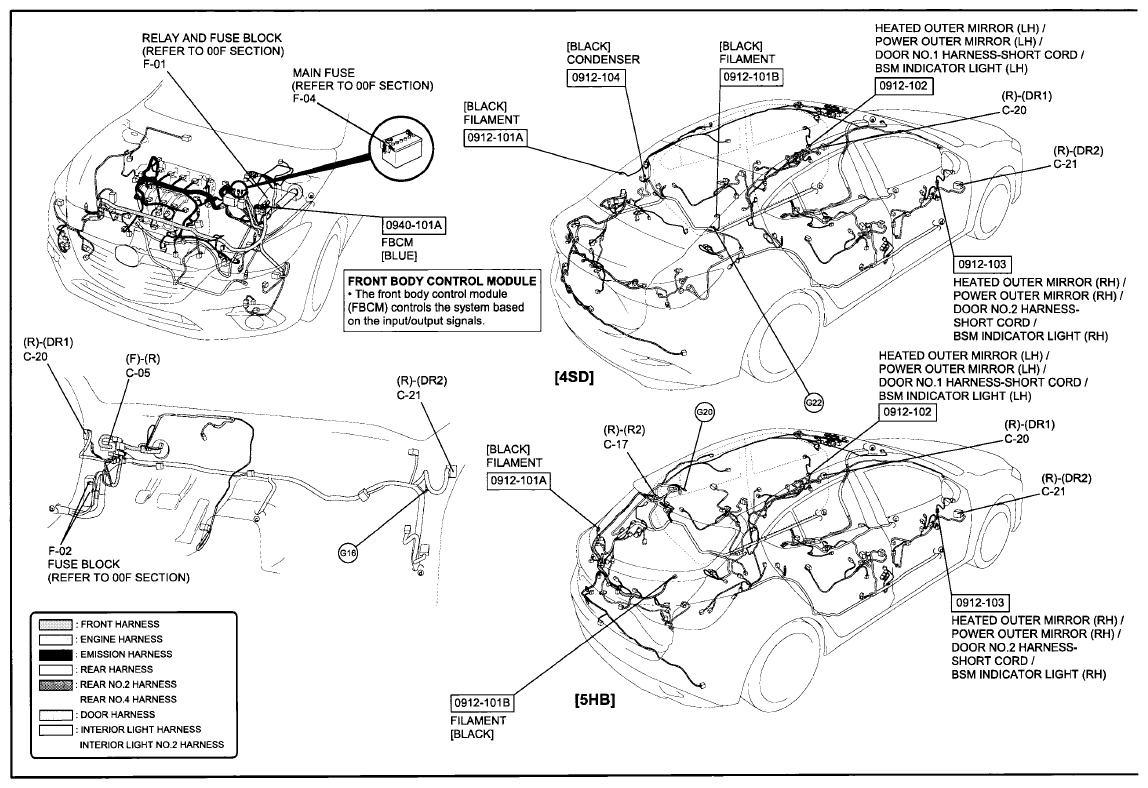

Fig 2: Rear Window Defroster (Includes Heated Outer Mirror Information) Wiring Harness Connectors (0912-1)
G09756473Courtesy of MAZDA MOTORS CORP.
