Brake System
›
Dynamic Stability Control System
Dynamic Stability Control System

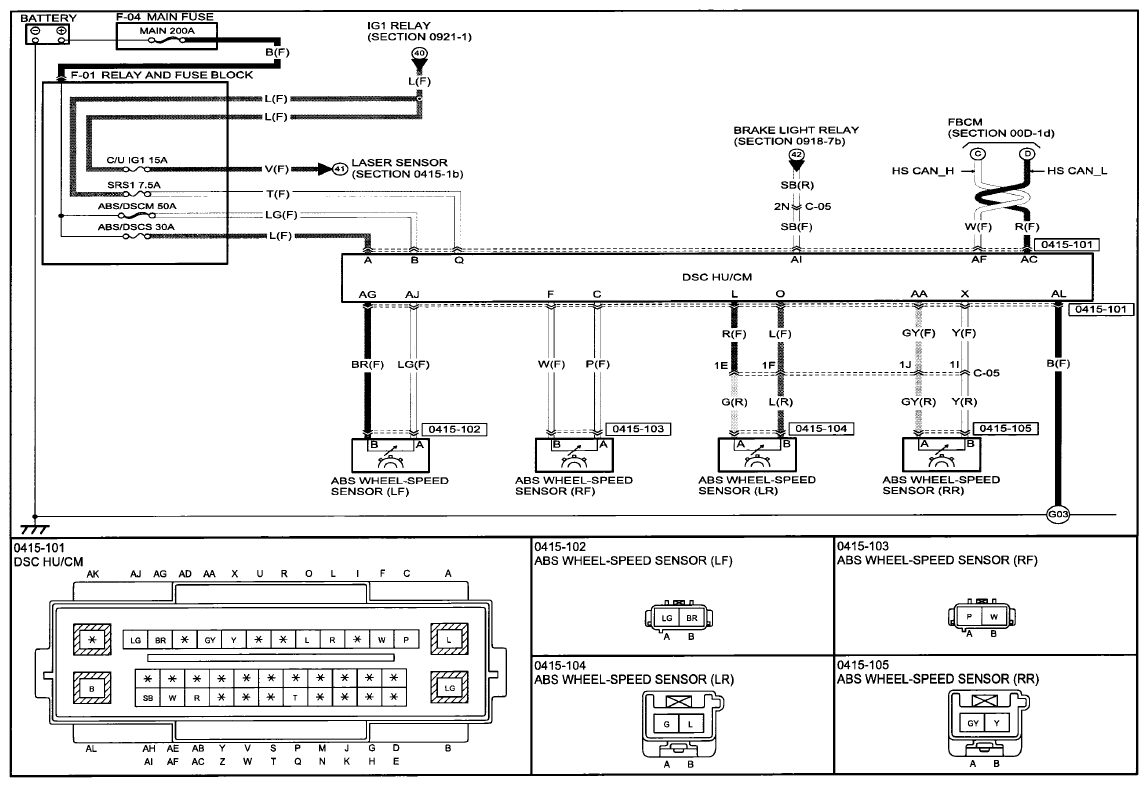

Fig 1: Dynamic Stability Control System Communication Diagram (0415-1A)
Courtesy of MAZDA MOTORS CORP.

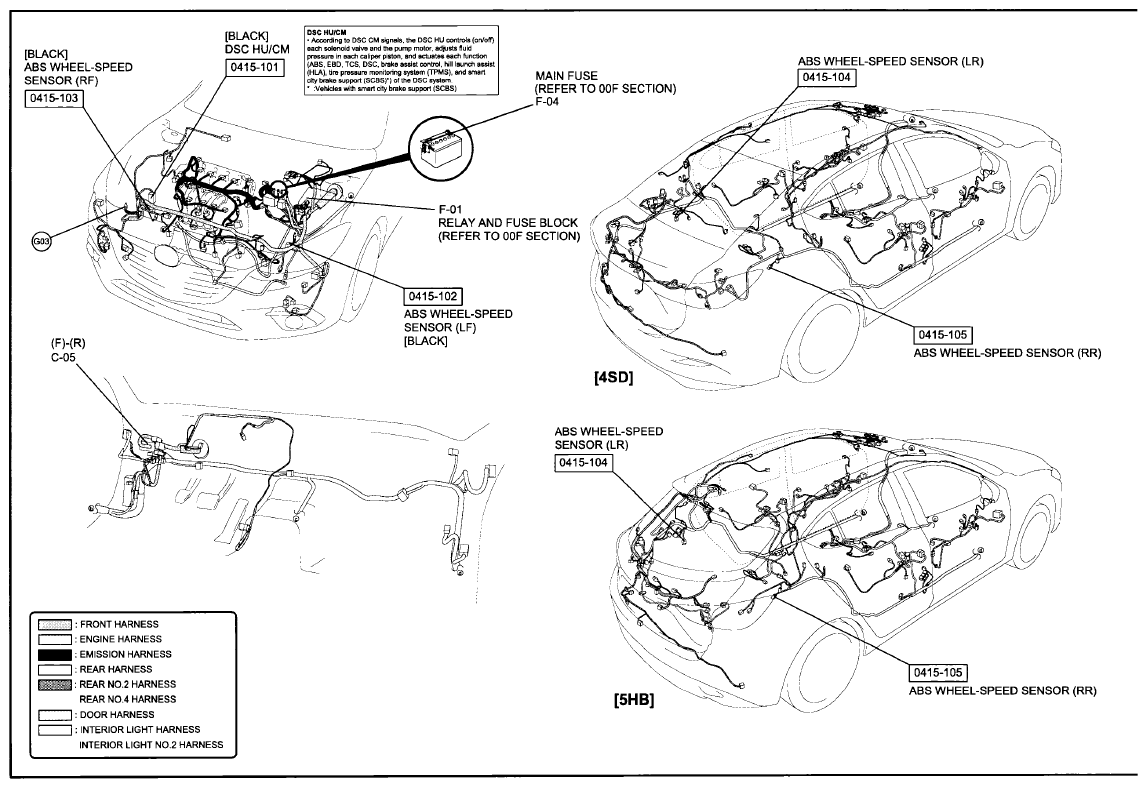

Fig 2: Dynamic Stability Control System Connector Wiring Harness (0415-1A)
Courtesy of MAZDA MOTORS CORP.

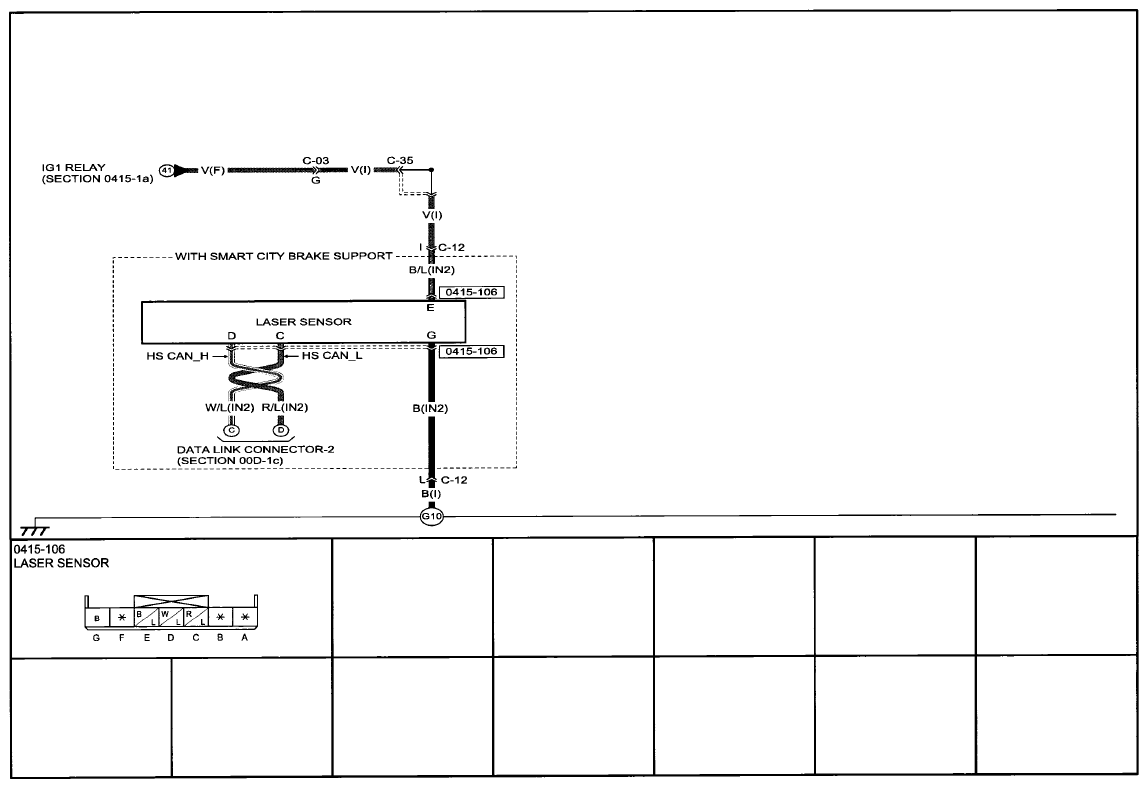

Fig 3: Dynamic Stability Control System Communication Diagram (0415-1B)
Courtesy of MAZDA MOTORS CORP.

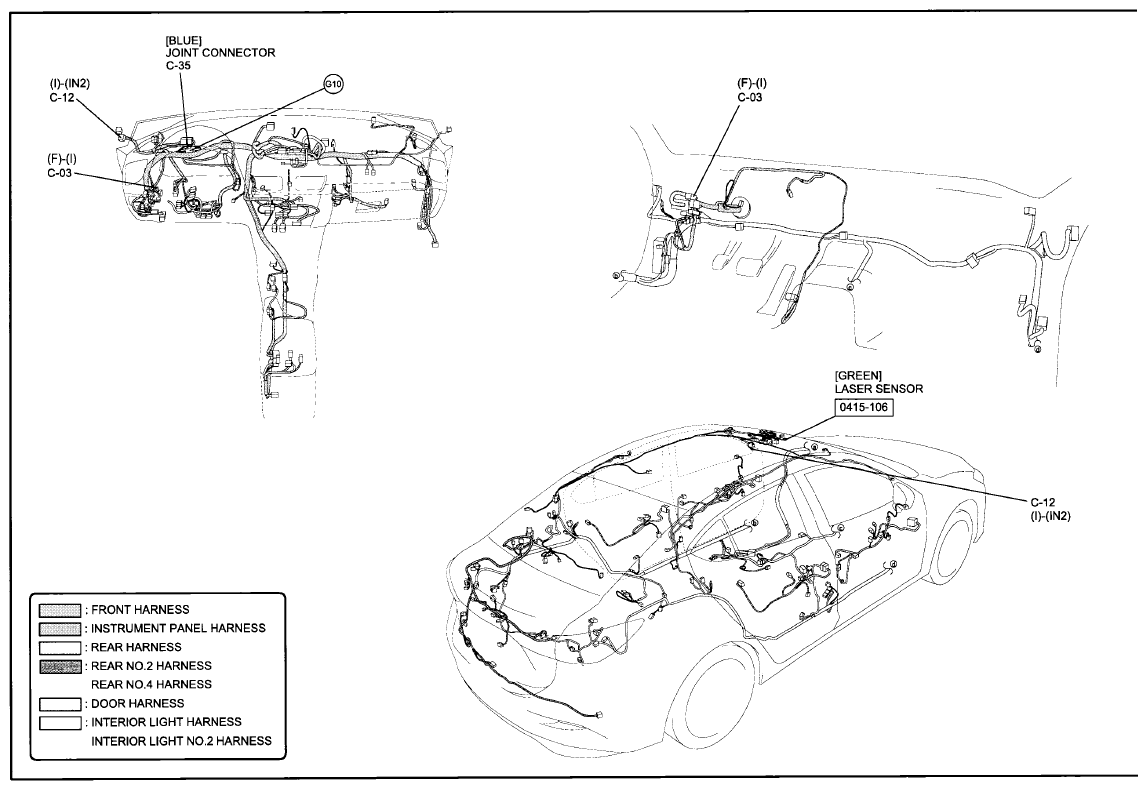

Fig 4: Dynamic Stability Control System Connector Wiring Harness (0415-1B)
Courtesy of MAZDA MOTORS CORP.
