Cooling System Location Index

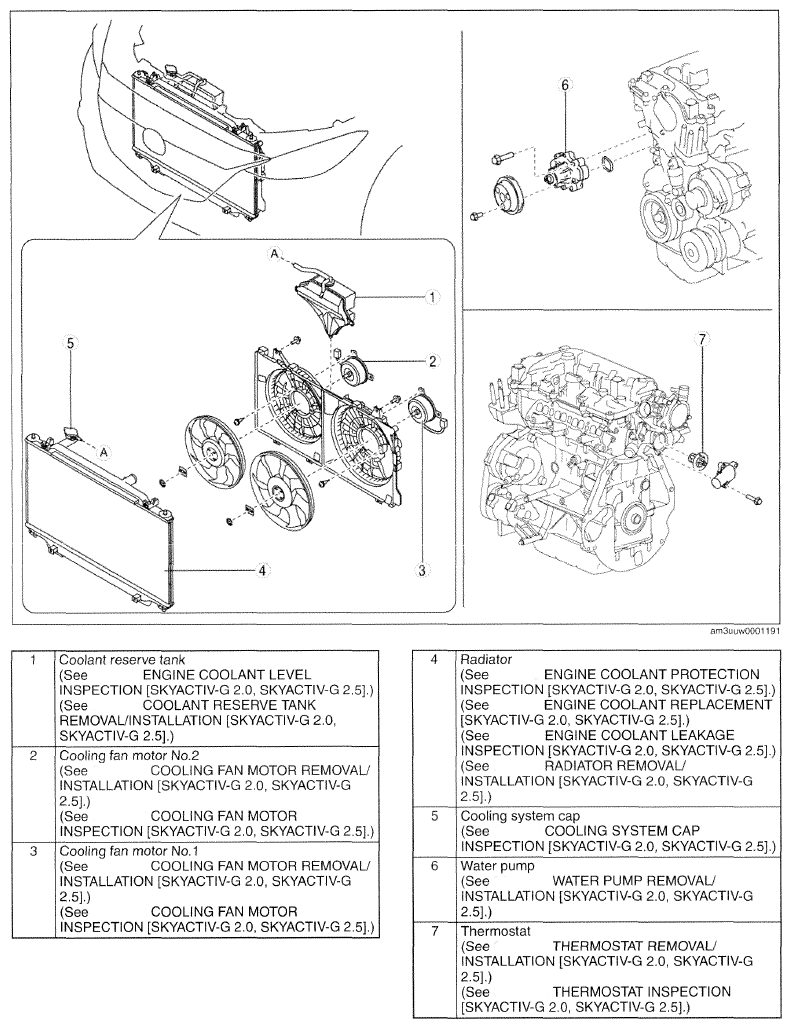

Fig 1: Identifying Cooling System Components (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
G09770886Courtesy of MAZDA MOTORS CORP.
