Exhaust System Removal/Installation
›
Step 1
Step 1

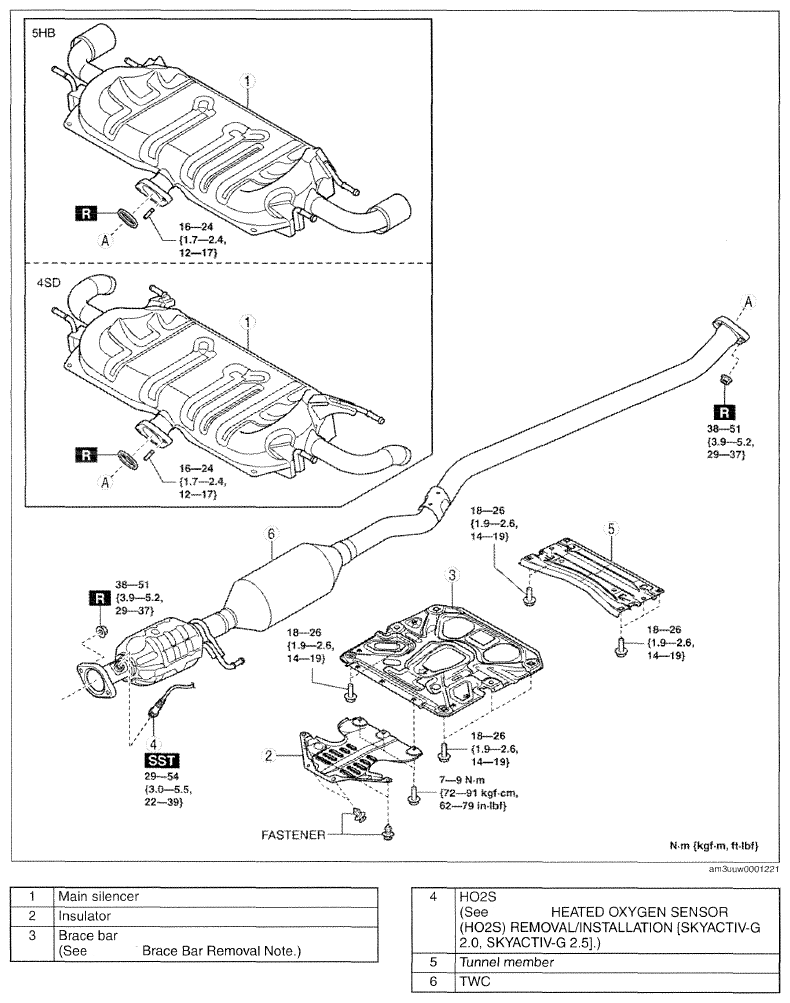

Fig 1: Exploded View Of Exhaust System With Torque Specifications (Step 1)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
