Exhaust System Removal/Installation
›
Step 2
Step 2

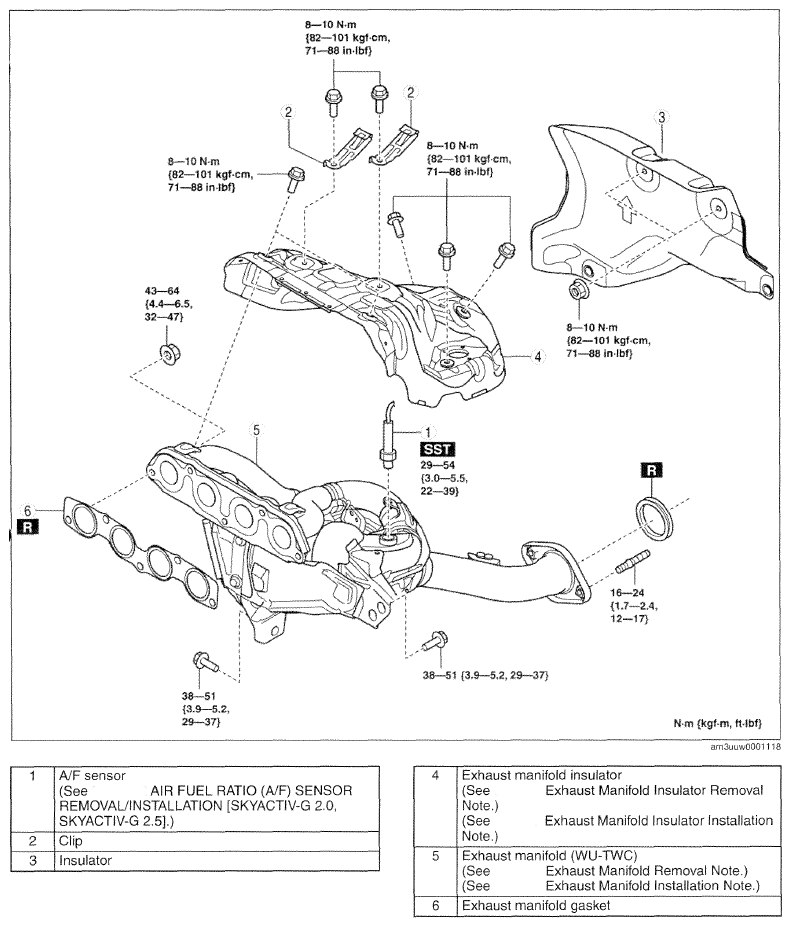

Fig 1: Exploded View Of Exhaust System With Torque Specifications (Step 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
