Section 60 (HVAC Basic System)
›
A/C Unit Removal/Installation
›
Drain Hose Installation Note
Drain Hose Installation Note
WARNING:
This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

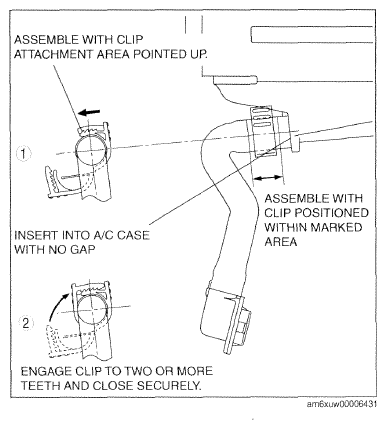

Install the clip as shown in the figure.
Fig 1: Identifying Drain Hose
Courtesy of MAZDA MOTORS CORP.
