Front Lower Arm Bushing Installation Note
- Install the front lower arm bushing using the SSTs
.CAUTION:

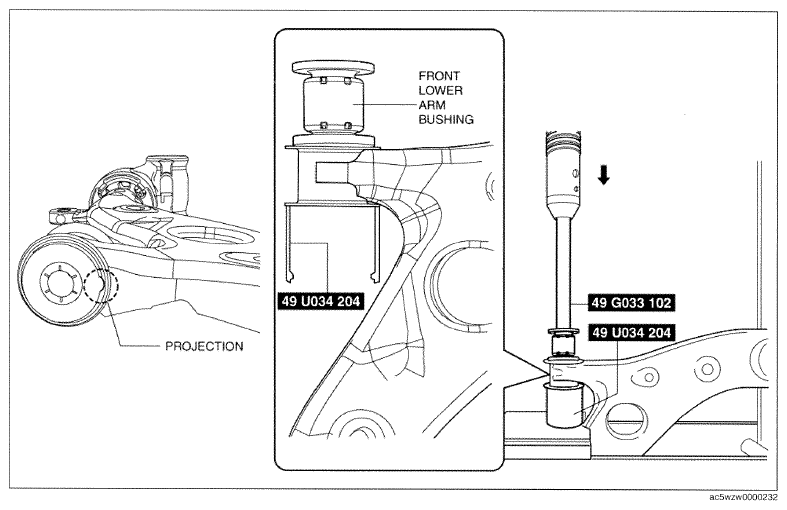

- Set the SST(49 U034 204) as shown in the figure and remove the front lower arm bushing.
- Install the front lower arm bushing so that the projection shown in the figure is pointing toward the front of the vehicle.
NOTE:- Applying soapy water to the front lower arm bushing facilitates installation.
- If soapy water gets in the inner pipe of the front lower arm bushing, always wipe it off using a cloth.
- After installing the front lower arm bushing, verify that it is installed to the position shown in the figure.
W: 5.8±0.8 mm {0.23±0.03 in}
