Front Lower Arm Removal/Installation: Notes

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table. See Fig 1.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

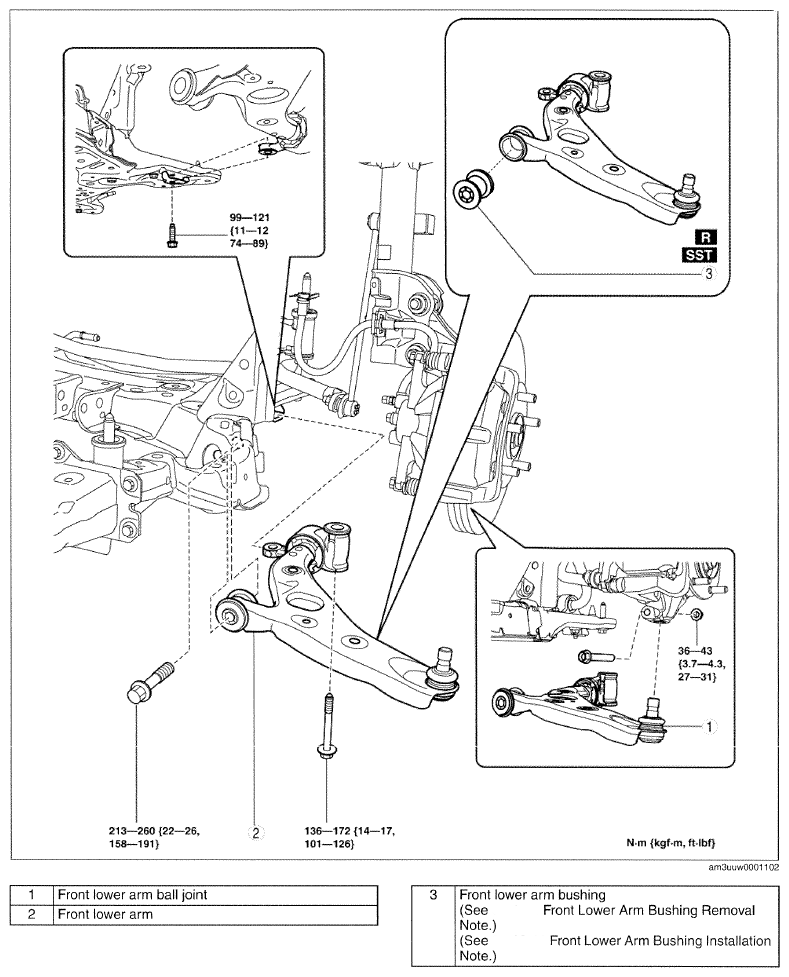

Fig 1: Front Lower Arm Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
