Selector Cable (Selector Lever Side) Installation Note

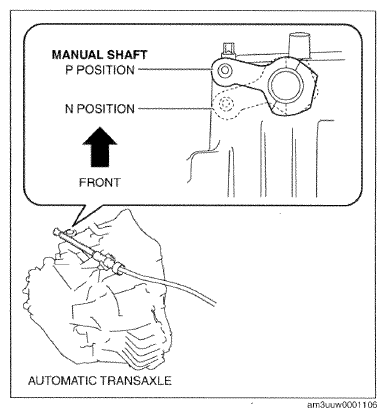

Verify that the selector lever is in the P position.
Verify that the manual shaft is in the P position.

Fig 1: Setting Manual Shaft To P Position
Courtesy of MAZDA MOTORS CORP.

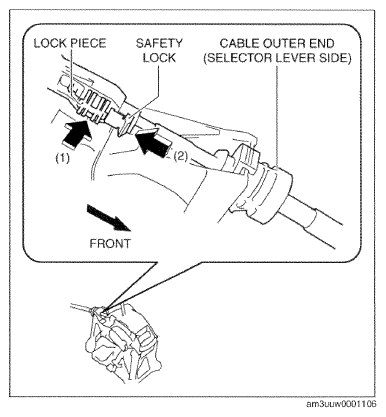

Press in the lock piece in the direction of the arrow (1) shown in the figure, press in the safety lock in the direction of the arrow (2) shown in the figure, and lock it.

Fig 2: Removing Selector Cable (Selector Lever Side)
Courtesy of MAZDA MOTORS CORP.
