Automatic Transaxle Symptom Troubleshooting
›
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

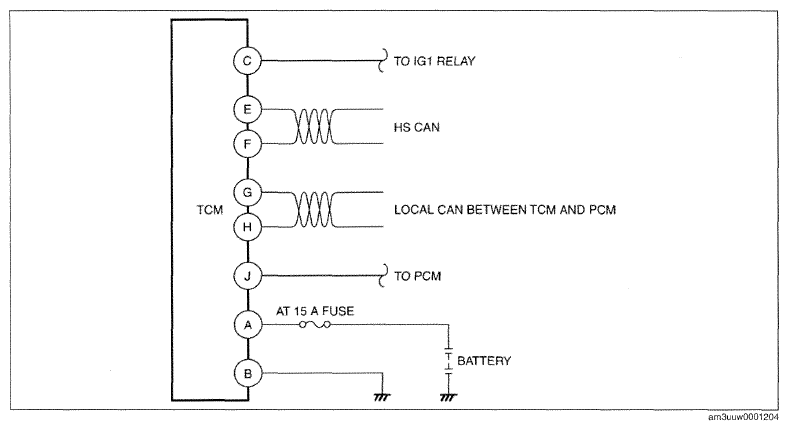

Fig 1: Automatic Transaxle Control System - Wiring Diagram (FW6A-EL)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
