Automatic Transaxle Symptom Troubleshooting
›
Quick Diagnosis Chart
Quick Diagnosis Chart

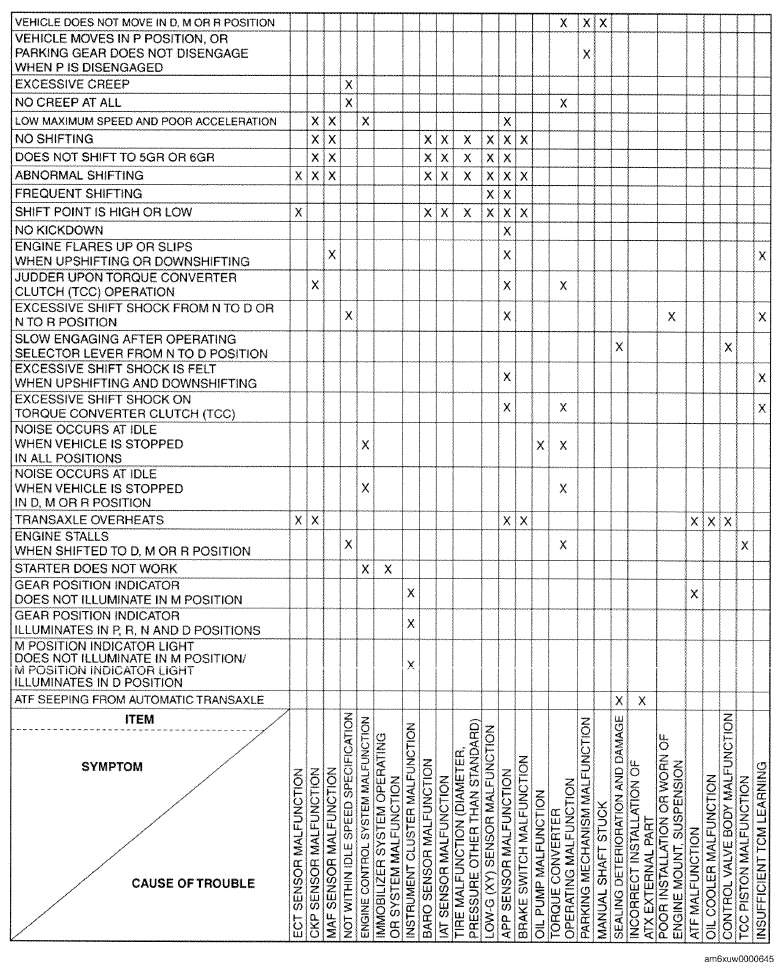

Fig 1: Quick Diagnosis Chart (FW6A-EL)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
