Indicator Removal Note
Indicator Removal Note
Detach tabs shown in the figure and remove the indicator.

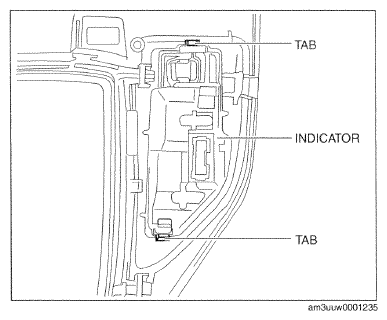

Fig 1: Identifying Tabs And Indicator
Courtesy of MAZDA MOTORS CORP.
